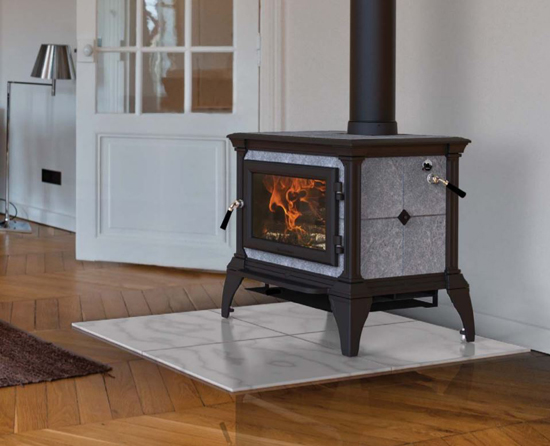

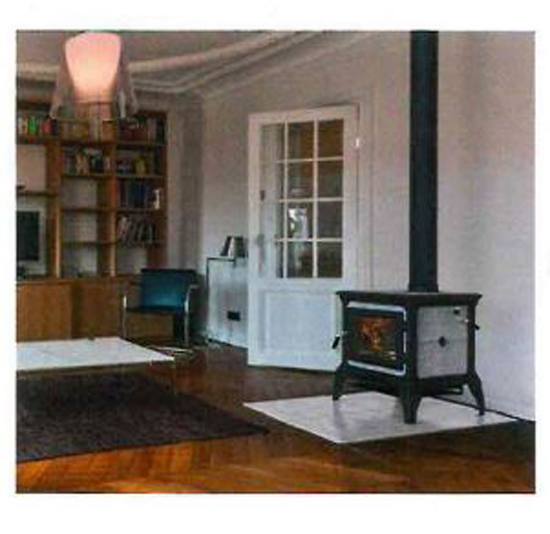

Hearthstone Castleton Woodstove Model 8031
Hearthstone · 2 documents
About
No Longer Available from Obadiah's.
The Hearthstone Castleton 8031 combines the best of both worlds with its hybrid cast iron soapstone design. The artistic craftsmanship and quick heating properties of cast iron are combined with soapstone's ability to radiate heat, resulting in a hybrid design that keeps your house warm and comfortable.
The Hearthstone Castleton 8031 is a hybrid design, combining the artistic craftsmanship of a cast-iron stove with the exceptional heating properties of soapstone to heat up to 1,500 square feet. Crafted with quality materials and design, the Castleton 8031 is a great value for the price. Call to order yours today!
- Cast Iron Construction: With soapstone lining, offers lasting heat
- Large Front Glass Door: Maximizes fire viewing

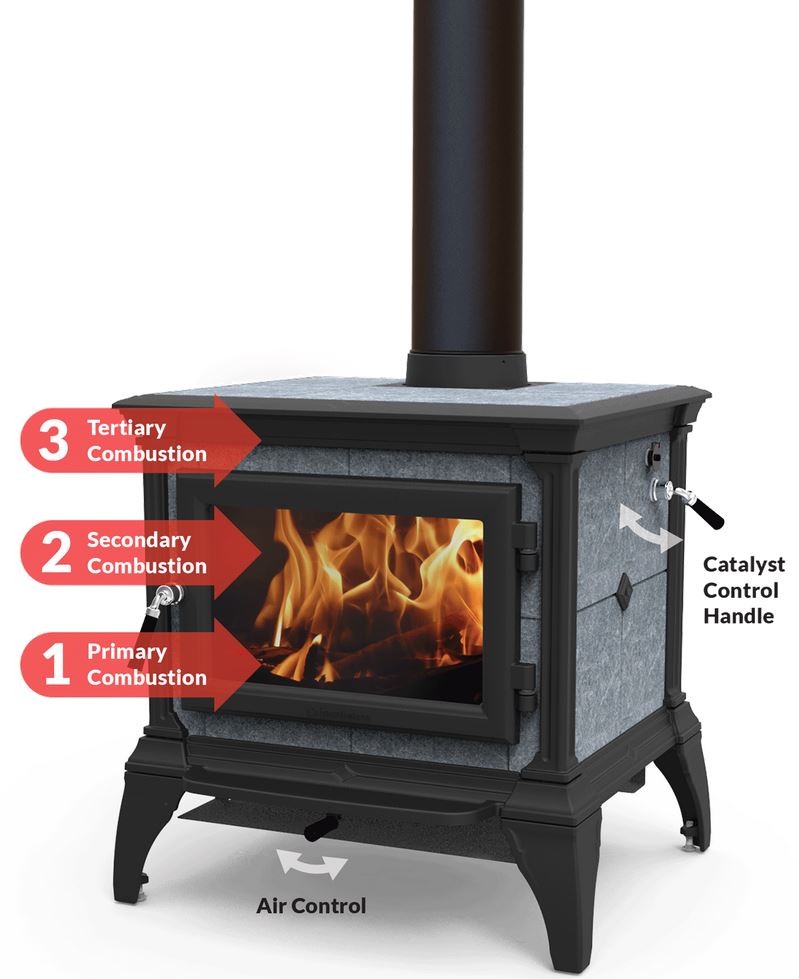

- Advanced Combustion System: Provides efficient and clean burn times of up to 20 hours
- 2020 Clean Air Standard: Meets U.S. Environmental Protection Agency requirements
- Single Lever Air Control: Allows for simple burn control for consistent performance
- Easy Catalyst Control Handle: Open side lever for smokeless startups, close for long, efficient fires
- Top or Rear Flue Exit: Allows either freestanding or hearth configuration
Options
Colors:
- Matte Black
- Brown Enamel

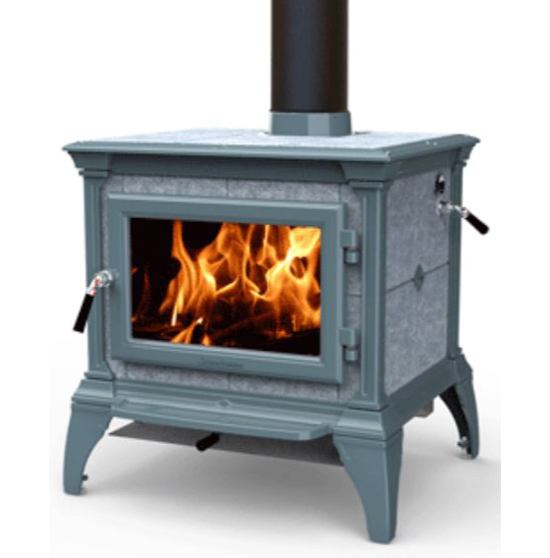

- Seafoam Enamel
Accessories:
- 3"-4" Conversion Collar (90-53308)
- Rear Heat Shield (90-68300)
- Convection Blower (90-57210)
- Outside Air Adapter (90-53300)
Specifications
| Castleton 8031 | Specification |
| Heats | up to 1,500 sq ft |
| Burn Time | up to 20 hrs |
| Heat Output BTUs/hr | 45,000 BTU/hr |
| EPA Certified | 0.69 g/hr |
| Efficiency | 77% |
| Width | 25 1/2" |
| Height | 25 7/8" |
| Depth | 24" |
| Firebox Capacity | 1.9 cu ft |
| Actual Weight | 464 lbs |
| Alcove Certified | Yes |
| Mobile Home Certified | Yes |
| Maximum Log Length | 18" |
| Flue Size | 8" |
| Minimum Chimney Height | 10' |
| Maximum Chimney Height | 30' |
| Clearances | With single wall pipe & no rear heat shield / With double-wall pipe & rear heat shield |
| Side | 17" / 17" |
| Rear | 15" / 8" |
| Corner | 8" / 8" |
