Ventis HEI240 Woodburning Fireplace Insert
Ventis · 3 documents
PDF
Brochure
Ventis_HEI_240_Brochure_2018.pdf · 4.8 MB
PDF
Owner's Manual
Ventis_HEI_240_Installation_Manual_2017.pdf · 6.0 MB
PDF
Tax Certificate
Certificate-Tax-Credit-Ventis-2023-2032.pdf · 596 KB
About

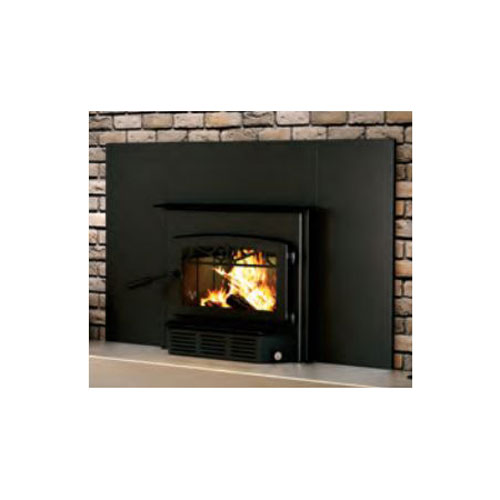

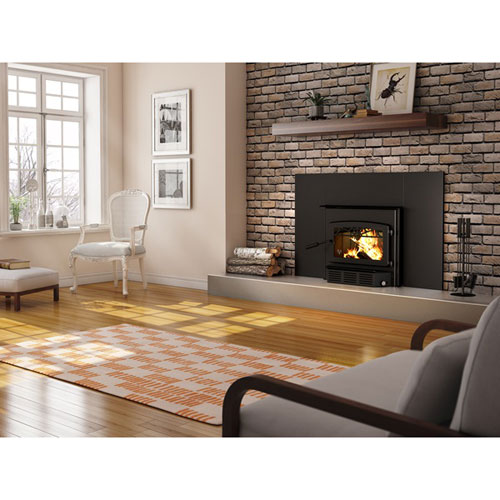

The Ventis HEI 240 will allow you to enjoy both the warmth and ambiance of the fire in the comfort of your home.
The beautiful Ventis Wood Insert HEI 240 offers one of the lowest emissions rates (3.9 g/hr) and a max output of 75,000 BTU/hr thanks to its 2.4 Cu. ft. combustion chamber. A 130 CFM blower is included to maximize the heating performance, along with its single door and cast iron frame, the HEI 240 will allow you to enjoy both the warmth and ambiance of the fire in the comfort of your home.
Features:
- Blower 130 CFM and Large Face-Plate Kit Included
- Heats up to 2,100 sq. ft.
- Optional Liner Adapters
- 71.2% Optimum Efficiency
- Holds 20" Logs
- 6" Flue Pipe Diameter
- Safety Tested and Verified
- Maximum output - seasoned cord wood 75,000 BTU
- Firebox volume 2.4 cu. ft.
- EPA certified
- Qualifies for Federal Tax Credit
Options:
Offset Liner Adapter
Hook Up Liner Adapter
Specifications
| Ventis HEI240 Wood burning Fireplace Insert | |
| Fuel Type | Dry Cordwood |
| Heating Area | 500 - 2,100 sq ft |
| Firebox Volume | 2.4 cu. ft. |
| Firebox Dimensions (W x D) | 21" x 16-3/4" |
| Overall Dimensions (W x D x H) | 28-3/8" x 26-1/8" x 23-1/8" |
| Max Heat Output | 75,000 BTU/hr |
| Max Burn Time | 8 Hrs. |
| Overall Heat Output Rate | 12,500 - 31,300 BTU/hr ( 3.7 - 9.2 kW) |
| Average Efficiency Overall | 69.5 HHV 75.2% LHV |
| Optimum Efficiency | 77.2% |
| Average Emissions Rate | 3.9 g/hr |
| Average Carbon Monoxide | 137.4 g/hr |
| Max Log Length | 20" ( 508 mm) East to West |
| Flue Diameter | 6" ( 152 mm) |
| Recommended Connector Pipe Diameter | 6" ( 152 mm) |
| Chimney Type | ULC-S635, CAN/ULC-S640, UL 1777 |
| Baffle Material | Vermiculite |
| Approved for Alcove/Mobile Home | No |
| Shipping Weight | 407 lbs ( 185 kg) |
| Actual Weight | 347 lb ( 1527 kg) |
| Door Type | Single, Glass w/ Cast Iron Frame |
| Door Opening Dimensions (W x H) | 12-1/2" x 8-3/4" |
| Glass Type | Ceramic |
| Glass Viewing Area (W x H) | 16-1/2" x 9" |
| Blower | Included ( Up to 130 CFM) |
| Warranty | Limited Lifetime |
| Particulate Emission Standard | EPA/CSA B415.1-10 |
| USA Standard (Safety) | UL 1482, UL 737 |
| Canadian Standard (Safety) | ULC S628 |
| Clearance to Combustibles | |
| Adjacent Side Wall | 16" |
| Combustible Side Surround | 12" |
| Combustible Top Surround | 20" |
| Combustible Mantel Shelf Dimensions | 8" / 10" / 12" |
| Minimum Clearance from Combustible Mantel Shelf | 22" / 24" / 26" |
| Minimum Fireplace Opening (H x W x D) | 23-3/8" x 28-7/8" x 15-7/8" |
| Minimum Floor Protection in front of unit | 16" |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
