Hitzer Model 82 Furnace

Hitzer · 3 documents

About

The Hitzer model 82 Furnace fully integrated for design and satisfaction. This stove utilizes the same basic design of the model 82 stove, while capitalizing on the availability provided by preexisting ductwork. In order to meet the convenience of our customers, the stove was designed to capture heat produced by the stove and with the help of the ductwork, distribute it directly to different locations throughout your home. This provides consistent and evenly distributed warm heat to the locations you desire. Having an extra-large fuel door and firebox also allows for multiple fuel types and sizes as well as btu ratings of 110,000. With this exceptional design this stove has a heating capability of up to 2,500 square feet.

Developed to meet customer’s satisfaction, the stove is accompanied with many available options to fulfill your needs. The model 82 Furnace may be used as radiant heat or with an optional 980 cfm blower. Other popular options include the air filter housing system that can accompany a blower unit and optional water coil for heating domestic hot water. This stove is very cost efficient and can be used as a primary source of heat due to it's amazing heat outputs. Relax and enjoy the qualities Hitzer stoves have to offer.

The Hitzer Model 82

  • Automatic Thermostat Control
  • Steel Construction
  • Sliding Damper System
  • Cast Iron Grates
  • Shaker Grate System
  • Removable Ash Pan
  • Firebrick Lined
  • 7" Flue
  • 12" Heat Duct Collar
  • Pewter Accents on Fuel and Ash Door Springs and Damper Rosette Knob
  • Stove Bright Paint in Charcoal
  • Multiple Fuel Capabilities (Anthracite and Bituminous Coal)

Optional Features

  • Radiant Model
  • Blower Model
  • 980 CFM Blower

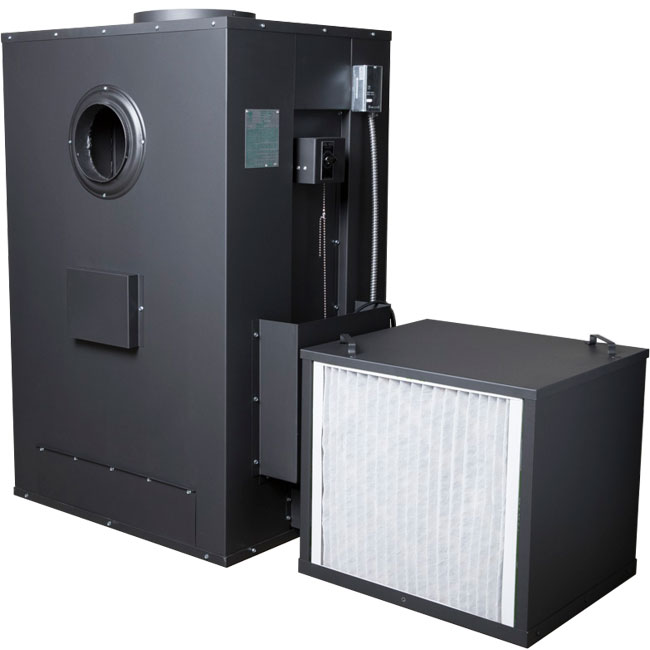

  • 20" x 20" Filter Housing for Blower
  • Hot Water Coil

Specifications

Coal Stove SpecificationsHitzer Model 82
Heat Area3,000 sq ft.
Fuel Door Dimensions11"W x 12"H
Firebox Door Dimensions15"W x 24"D x 13"H
Stove Dimensions25"W x 30"D x 48"H
BTU Output30,000 to 110,000 BTU
Flue Pipe Diameter7"
Floor to Flue - Top/Bottom41" / 34"
Clearance to CombustiblesHitzer Model 82
Unit - Side / Back28" / 28"
Flue - Side / Back18" / 18"
Floor Protection - Front / Side / Rear16" / 8" / 8"

Photos
