J.A. Roby Exo Wood Cookstove
J.A. Roby · 2 documents
PDF
Installation Manual
JA-Roby-Installation-Reservoir.pdf · 705 KB
PDF
Owner's Manual
JA-Roby-Exo-Wood-Cookstove-Manual.pdf · 3.6 MB
About

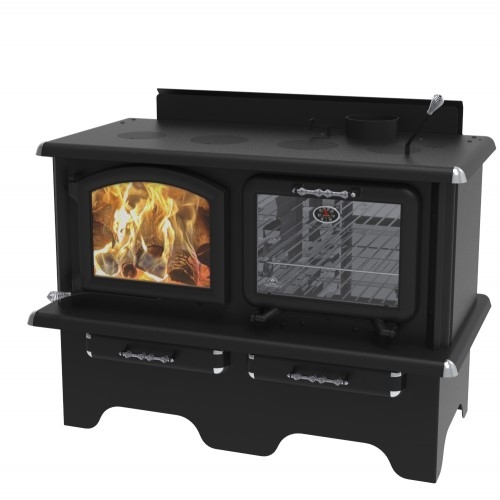

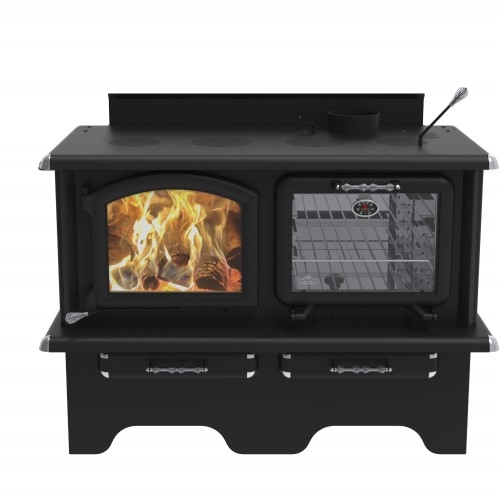

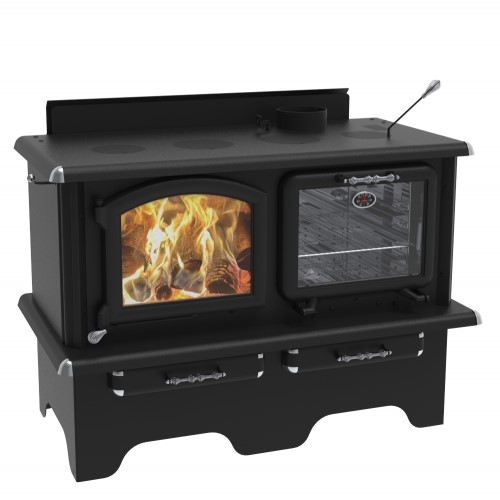

The J.A. Roby Exo Wood Burning Cookstove heats up to 2,500 square feet. It features a baking oven, cooking surface, and storage drawers. Chrome accents improve its aesthetics, while the air-wash system keeps maintenance to a minimum.
Features
- Model with two cast iron doors
- High efficiency CSA B415.1-10 certified appliance
- Recommended heating area (sq.ft): 1000 - 2500
- EPA Exempt certified
- Color: Metallic black
- Handles, corners and chrome ornaments
- Model: Freestanding
- Convection and radiation heating system
- Air-wash system on firebox system
- Glass oven door
- Storage drawers
- Cooking area 16" X 47"
- Thermometer on oven
- Low clearance to combustible material
- Baffle: Fiber ceramic
- Outdoor air intake
- Firebox lined with refractory bricks for better heat distribution
- Stainless steel secondary air system improving gas combustion
- Recommended chimney: 6"
- Low emissions 1.02 g/h
- LHV 79,46 %
- Log length 19"
- Tested as per applicable standards by Intertek
Options
- Outdoor air intake package kit (ECPAE)
- Additional oven rack for cookstove (CUISINIEREGF)
- Black enameled cast iron cooking plate, right (PLAQUECUID)
- Black enameled cast iron cooking plate, left (PLAQUECUIG)
- Outdoor air intake (installed in plant) (TCPAE)
Outdoor Air Intake Package (ECPAE)
- 10ft insulated air duct
- Wall grill/connector
- 2x Clamp
