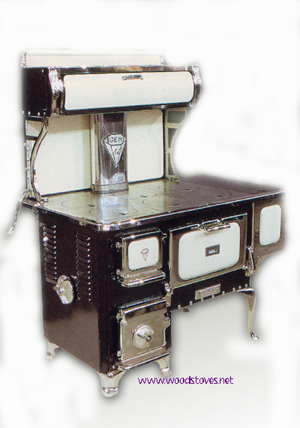

Margin Gem by Margin Stoves

Lead time ranges from 4 - 12 weeks depending on the time of the year. Plan to order ahead of when you will need the stove.

Scroll down for prices

Heats up to 1,500 Sq. Ft.
Black, white, or almond porcelain finish
Easy ash removal
Finger-tip damper controls
Beautifully finished porcelain oven
Water reservoir right hand side (optional)

The Margin Gem cookstove is manufactured in Canada by Margin Stoves and has been in business since 1974. The Margin Gem is a classic woodburning, antique-styled cookstove. The Margin Gem looks like cookstoves of days gone by with the benefits of a new stove. With its traditional style, its sure to be a conversation piece. With the Margin Gem being availble in an assortment of colors, this cookstove will compliment any home.

Features:

Heating capacity of 1,750 square feet or more
Airtight, bell draft controlled firebox will take up to a 17 inch log for an all night burn
Takes standard firebrick that is inexpensive and easy to replace and install
Front loading firebox
Ash pan located inside the door on left side of stove
Cast iron cook top for a strong and evenly heated cook top
Cast iron wood grate system
Exclusive "Air Jet" re-burn design
Large ash trays below grates for convenient ash removal
Porcelain exterior finish throughout, standard in black
Porcelain black oven interior
Nickel plate trim
Ships with free poker, lid lifter and ash scraper
Includes 18" oval section of stainless steel stove pipe
Limited one-year warranty

Options:

Full warming closet or shelf only
Available in white, almond or black porcelain
Firebox hot water jacket
2nd oven rack (comes standard with one rack)
Butter plate warmers on back splash (ornamental only)
5 gallon water reservoir, copper-lined, with or without faucet
Rear mount 20 gallon stainless water reservoir
Air jets, liner and coal grate
Lay-on plate for wood burning
Optional coal burning package
Circulating fan
Decorative trivets
Thermostatic control

Margin Gem	Without Reservoir / With Reservoir
Overall size	31" D x 42" W x 60"H / 31" D x 52" W x 60" H
Overall height	64" / 64"
Height to cooktop	31.5" / 31.5"
Cooking surface	26" x 37" / 26" x 37"
Oven	20" W x 10 3/4" H x 20" D / 20" W x 10 3/4" H x 20" D
Firebox	17" L x 12" W x 14" D / 17" L x 12" W x 14" D
Log Length	17" / 17"
Approx. burn time	4 - 7 hours / 4 - 7 hours
Approx. heating area	1,750 sq. ft / 1,750sq. ft
Flue outlet size	7" / 7"
Reservoir capacity	/ 5 gallons on the side
Shipping weight	550 lbs. / 600 lbs.
Safety Testing	UL 1482 for U.S.A. / UL 1482 for U.S.A.
Safety Testing	CSA B366.2m Canada / CSA B366.2m Canada
Safety Testing	ULC-S627 for Canada / ULC-S627 for Canada
Margin Gem Clearances to Combustibles
Back wall to unit	6" / 6"
Firebox Side wall to unit	26" / 26"
Back wall to pipe	5" / 5"
Other sidewall to unit	6" / 6"
Firebox Side wall to pipe	39 1/2" / 39 1/2"
Other Sidewall to pipe	30 1/2" / 30 1/2"
Chimney Connector
Unprotected Surface	18" / 18"
Protected Surface	6" / 6"
