Osburn Matrix 2700 Wood Burning Insert
Osburn · 2 documents
About
Inspired by Nature, the Matrix 2700 insert is a combination of conventional style and mechanical advancement. Situated in the core of your living space, the liberal viewing area of the Matrix 2700 will welcome you to sit back, unwind and take in the quiet and warmth of its flames.
*Revised 5/4/21

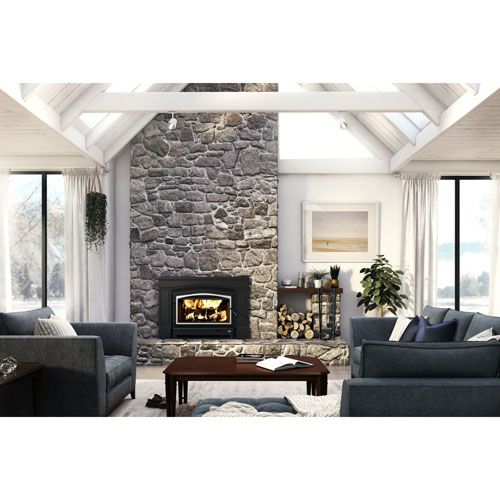

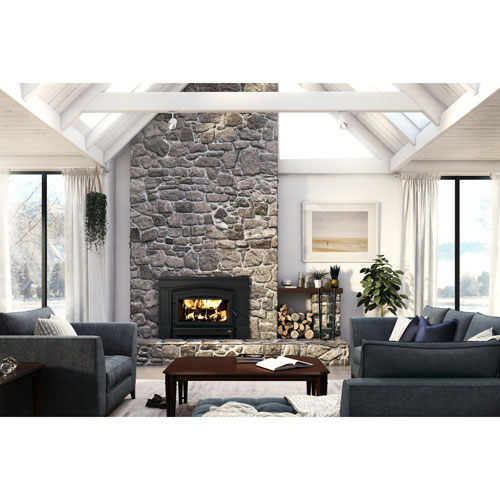

Eco-savvy customers will value its effective ignition, quality execution and great magnificence. Alter the appearance of this non-catalytic machine by browsing a black or brushed nickel-plated entryway overlay and flame screen.
Features:
- Refractory Bricks - For better heat distribution
- 8 hr Burn time
- 2.5 cu. ft. Firebox Volume
- 74% Efficiency
- EPA Compliant
- Glass Air Wash System
- Secondary-Air System - To improve gas combustion
- Adjustable Threaded Legs
- UL Listed
- Limited Lifetime Warranty
Options:
|
2" OR 4" PROJECTION KIT FOR INSERT |
34'' X 50'' CUTTABLE FACEPLATE |
|
5"Ø FRESH AIR INTAKE KIT OVAL |
FIRE SCREEN |
Specifications
| Matrix 2700 Wood Burning Insert | |
| Fuel Type | Wood |
| Overall Dimensions | 30-1/8"H x 43-5/8"W x 27-1/4"D |
| Heating Area | 750-2200 sq. ft. |
| Firebox Volume | 2.5 cu. ft. |
| Max Burn Time | 8 hr. |
| Max Heat Output | 80,000 BTU/h |
| Optimum Efficiency | 74% |
| Average Particulate Emissions Rate | 1.14 g/hr |
| Max Log Length | 20" |
| Chimney Diameter | 6" |
| Min Chimney Height | 15' |
| USA standard (Emissions) | EPA 2020 |
| Warranty | Limited Lifetime |
| Clearances to Combustibles | |
| Side Mantle to Unit | 9-1/2" |
| Top Mantle to Unit | 12" |
| Side Wall to Unit | 19" |
| Minimum Floor Protection | 16" |
