Buck Model 74 Non Catalytic Wood Stove or Insert
Buck Stove · 1 document
About
Currently Unavailable
The Buck Stove Model 74 is a non-catalytic wood burning stove or insert designed to meet the most stringent emissions standards without the use of a catalytic combustor. The Model 74 has a BTU rating of 52,400 and can heat up to 2,600 square feet. The 74 delivers heavy duty heat performance
*Revised 10/3/20
Features:
- Product Dimensions: 21-1/2" H x 27-5/8"W x 22-3/8” D
- Blower Included
- Fuel Type: Wood
- Max BTU Output: 13,300 to 52,400
- Specific Use: Mobile Home Approved
- Vent Type: Wood Chimney Vent
- EPA tested to produce up to 52,400 BTU per hour output using seasoned cord wood
- Rated heating capacity of 1,500 to 2,600 square feet
- Firebox volume of 2.5 cubic feet
- Accommodates 16" logs placed front to back or 22" logs placed side to side
- Optional heat circulating blower available
- Solid 73% overall EPA efficiency rating
- Approved for use in prefabricated and mobile homes
- Overall stove weight: 460 pounds
- Uses 6" diameter stovepipe
- Non-catalytic design for easy operation and lower maintenance
- Emissions of 1.8 grams per hour
Options
|
Door Available in Black, Gold, or Pewter |
Damper Rode Available in Black or Gold |
Spring Door Handle Available in Black or Gold |
|
Queen Anne Legs 7 3/4" Available in Gold, Black, or Pewter |
Queen Anne Legs 8 11/16" Available in Gold, Black, or Pewter |

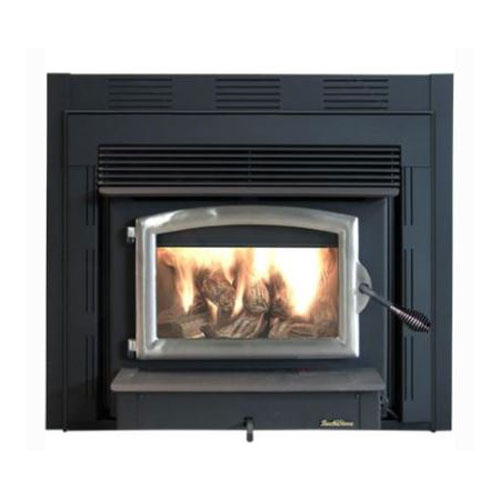

Insert Surround Available in Standard or Oversize |

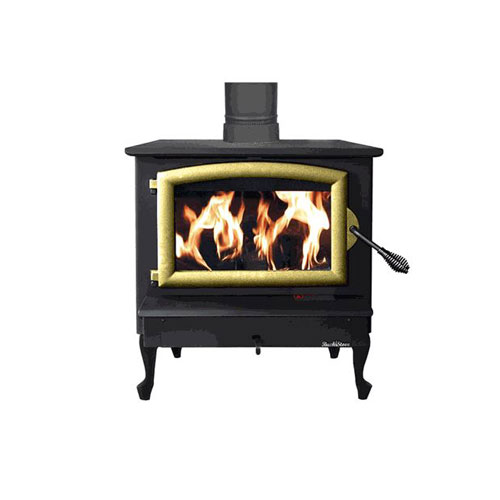

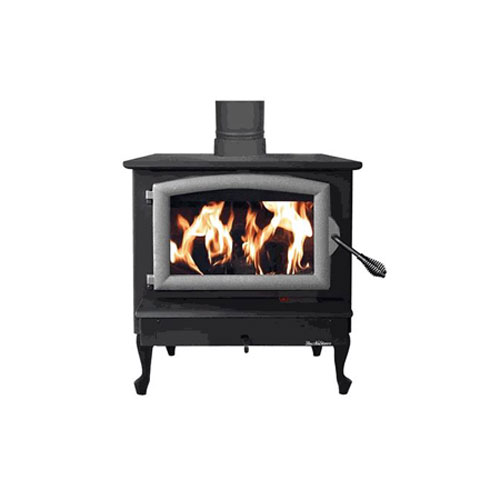

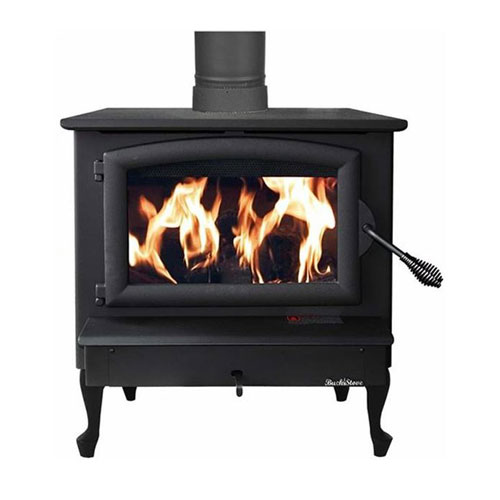

| Freestanding Style |
Pedestal Style |
Specifications
| Product Specifications | |
| Heating Capacity | 1,500 - 2,600 sq ft. |
| Stove Dimensions | 21 1/2" H x 27 5/8"W x 22 3/8"D |
| Minimum Fireplace Dimensions | 22 1/2" H x 27 3/4"Q z 15"D |
| Weight | 460 lbs |
| Efficiency | 73% |
| Firebox Volume | 2.5 cu ft |
| Flue Size | 6" |
| Minimum Hearth Pad Size | 34"W x 48" D |
| Emissions g/hr | 1.8 |
| Tested BTU/hr Output | 52,400 |
| Pre-fab and Mobile Home Approved? | Yes |
| Blower | Optional |
| Firewood Length | 22" (Side to Side) 16" (Front to Back) |
| Warranty | 5 Years |
