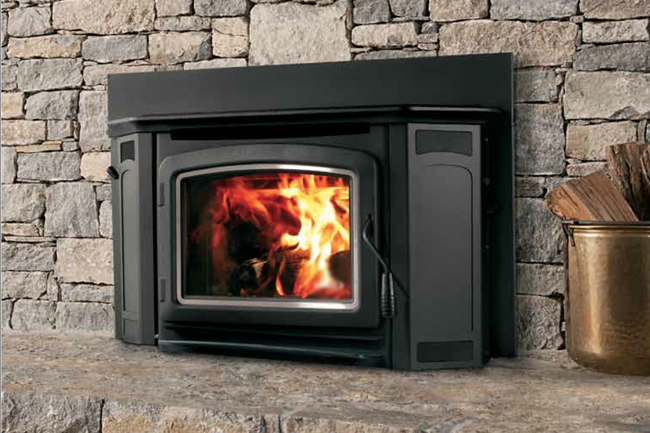

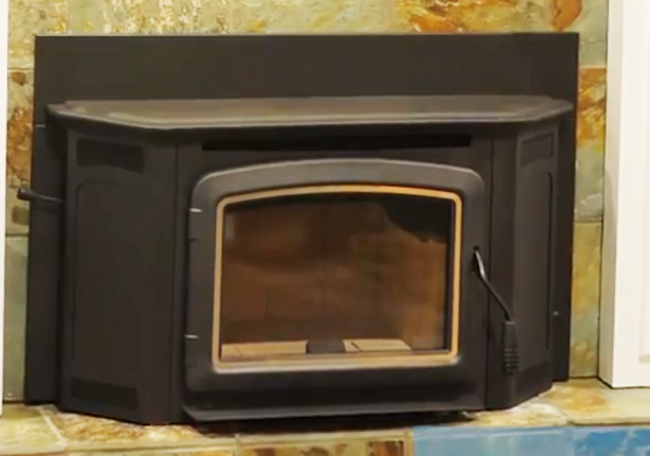

IronStrike Montlake 230/300 Wood Insert

IronStrike · 5 documents

About

The IronStrike Montlake Wood Burning Insert Series represents traditional style wood heating, with the efficiency of the latest combustion technology. The Montlake Series provides (2) models: 230 and 300 wood burning appliance to fit your masonry heating needs. Enjoy all the brilliance of a traditional wood fireplace without having to sacrifice an efficient and clean way to heat with wood.

The new Montlake 230 wood insert offers a more efficient approach to home heating, utilizing our TFTTM (Thermal fin technology) to add more heat to your home. This insert comes standard with a 2.3 cu.ft. combustion chamber, ceramic glass, interior brick and baffle, 150 cfm blower, air wash system and a 6" flue outlet. Note: The model 300 includes (2) Dual 150 CFM Blowers. Stylish and sensible, the Montlake™ 230 and 300 fireplace insert from the Country Collection converts any fireplace to an efficient, clean-burning wood heater. The Montlake Wood Burning Insert's elegant design features an expansive ceramic glass panel that offers unobstructed views of the fire and enhances the existing fireplace. Each EPA-certified insert comes equipped with IronStrike's innovative Thermal Fin Technology (TFT™), a cast iron heat exchanger system that maximizes heat output to quickly deliver warmth to your living space. And with features like the Montlake's precise one-touch control and smoke-reducing air booster, reliability, efficiency, and technology come together to ensure lasting comfort for your home.

  • IronStrike Wood Insert EPA: Tested and Approved Promise

Features

  • Unique, integral airwash system keeps the glass clean and clear for a wide-open expansive view of the burning fire
  • Precision-cut, heavy-gauge steel provides dependable, long-lasting operation
  • Innovative Thermal Fin Technology™ (TFT) creates 32% more surface area than a standard design resulting in more heat entering the room
  • High-density firebrick retains heat, resulting in increased efficiency
  • EPA-certified and Washington State-approved for clean and efficient operation
  • One-touch control ensures easy operation and comfort
  • 150-CFM variable-speed blower quickly moves heat from the stove into your room

Options

  • Decorative door trim in standard Black, Brushed Nickel or Nickel allows customization to your style
  • Top warming surface with classic cast-iron or solid, heavy-gauge steel options allow for easy customization


  • Montlake 230 Surround Sizes
  • Montlake 300 Surround Sizes



Specifications

SpecificationsIronStrike Montlake / 230/300 Insert
Model230 / 300
Minimum Fireplace Dimensions25-1/2"W x 21 1/2"H x 15 1/2"D / 29 1/2"W x 23 1/2"H x 16 1/2"D
FuelWood / Wood
Venting6" Pipe / 6" Pipe
View StyleFront View / Front View
Firebox17” W x 19” D x 12-1/2” H 2.3 cu.ft. / 18.2”W x 21.23”D x 13”H 2.91 cu.ft.
Glass Viewing Area16-1/2" W x 11-5/16" H / 16-1/2” W x 11-5/16” H
Cord Wood76,000 BTUs/hr. / 100,000 BTUs/hr.
Max Burn Time12 hours / 14 hours
EPA Grams Per Hour3.6 gr/hr / 3.1 gr/hr
EPA Efficiency63% / 63%
Heat Transfer Efficiency84% / 82%
Heating Capacity1,200-2,200 sq. ft. / 2,000-3,000 sq. ft.
Max Log Length18" / 21"
EPAEPA Certified / EPA Certified
Weight390 lbs. / 428 lbs.
WarrantyLimited Lifetime / Limited Lifetime
This model is no longer sold new. Its manuals stay here, and we still supply parts.
