J.A. Roby Mystere Stove - Discontinued*
J.A. Roby · 3 documents
About
*PRODUCT DISCONTINUED - This page is for informational purposes only.

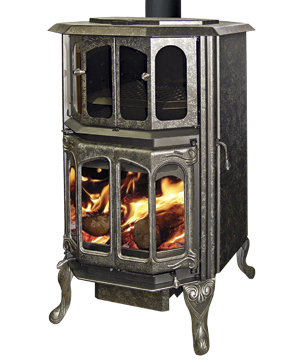

The Mystere Classic from J.A. Roby is a wise choice for anyone looking to add a small, stylish wood-fired cook stove to their home where space is limited. It features a highly efficient combustion system with low clearances and large, cast-iron and glass bay doors for your fire viewing pleasure. The charming design of the doors and legs add to its classic style.
Click on the tabs below for useful information, installation manual, photos, and more!
*PRODUCT DISCONTINUED - This page is for informational purposes only.
The Mystere Classic offers a 20" x 12" viewing window and many stylish options to fit your needs exactly, without having to sacrifice the even warmth and highly efficient combustion. EPA certified, the Mystere Classic also offers an optional oven to enjoy the traditional way of cooking on a wood fire.
Features
- Wood stove model with cooktop (oven optional)
- Two cast-iron and glass bay flame view doors
- High efficiency combustion
- Convection and radiation heating system
- Air-wash system
- Low clearances to combustible materials
- Can be used as an extra cooking stove
- Easy access ash drawer
- Offered in two one-tone finishes: metallic black or honey-glow brown or in two rustic style finishes: Metallic black hammered charcoal or metallic black hammered brown
Options
- Oven
- Blower thermodisc kit
- Rigid fire-screen
Specifications
| Mystere Classic | Without Oven / With Oven |
| Fuel | Wood / Wood |
| Weight | 380 lbs / 172.36 kg / 400 lbs / 181 kg |
| Recommended Heating Area | Up to 1850 ft² / Up to 172 m² / Up to 1850 ft² / Up to 172 m² |
| Maximum output | Up to 52,000 BTU/hr / Up to 52,000 BTU/hr |
| Burn Time | 3 to 5 hours / 3 to 5 hours |
| Overall Dimensions W/H/D | 26" x 31" x 27 ¾" - 66 cm x 78.7 cm x 70.5 cm / 26" x 46" x 27 ¾" - 66 cm x 116.8 cm x 70.5 cm |
| Firebox Dimensions W/H/D | 18" x 12" x 17¾" - 45.7 cm x 30.5 cm x 44.5 cm / 18" x 12" x 17¾" - 45.7 cm x 30.5 cm x 44.5 cm |
| Door Opening | 17 ½" x 9 ½" - 44.5 cm x 24.1 cm / 17 ½" x 9 ½" - 44.5 cm x 24.1 cm |
| Maximum log length | 16" - 40.64 cm / 16" - 40.64 cm |
| Type of chimney | 2100° F. - 650° C / 2100° F. - 650° C |
| Recommended Flue | 6" - 15.24 cm / 6" - 15.24 cm |
| Minimum Chimney Height | 12' - 3.66 m / 12' - 3.66 m |
| Standard test - emissions | EPA / EPA |
| Standard test - safety | ULC-S627-00 / ULC-S627-00 |
| Minimum Clearances to Combustibles | |
| Rear | 8" - 20.3 cm |
| Side | 12" - 30.5 cm |
| Corner | 12" - 30.5 cm |
| Top (measured from floor) | 84" - 2.1 m |
