Napoleon S20 Wood Burning Stove - Discontinued
Napoleon · 2 documents
PDF
Manual
Napoleon-S20-Wood-Stove-Manual.pdf · 3.9 MB
PDF
Specifications
Napoleon-S20-Wood-Stove-Specs-Sheet.pdf · 263 KB
About
This product has been discontinued and is no longer available.

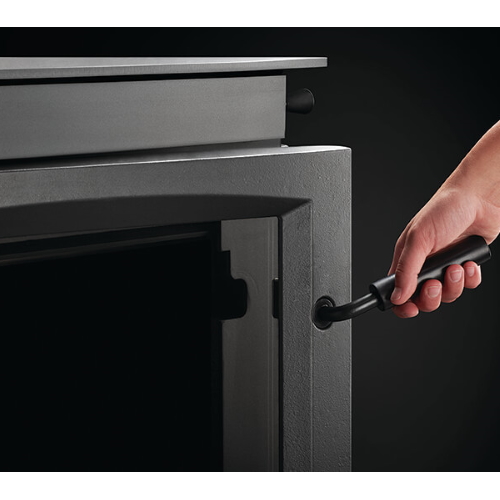

The Napoleon S20 Wood Stove has a clean and contemporary look. Best in class features include extremely long burn times, heavy duty firebox top and full width ash lip to protect your floor. This modern wood stove is EPA approved with a modern cast iron door and pedestal base in a metallic charcoal finish. This stove features a "Secure Lock" lever action door handle making refuelling safe and easy and the large ash pan with easy glide rollers provides an easy way to clean up
*Revised 7/22/20
Features:
- The Napoleon S20 Wood Burning Stove heat up to 1800 sq. ft.
- Up to 65,000 BTU’s
- 1.9 cu. ft. firebox capacity
- Burn time: 8 hours
- Weighted average emissions rate: 2.25 g/hr
- Weighted average overall efficiency: 72%
- Tested to 2020 cord wood requirements
- Hidden hinges and extra large glass viewing area
- Contemporary wood stove complete with contemporary cast door and cast pedestal base

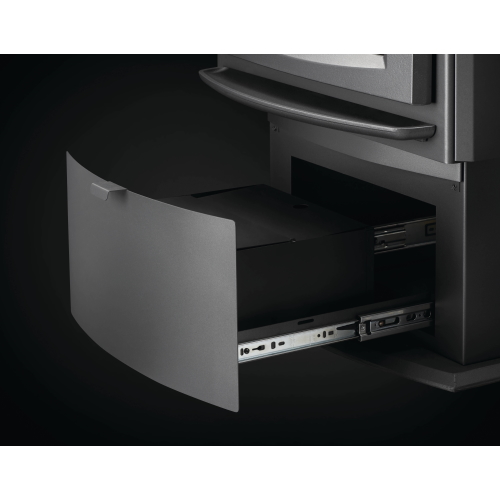

- Precision easy glide ash drawer with removable ash pan complete with lid for convenient and easy disposal
- Heavy duty 5/16" firebox top
- Ceramic fiber baffle system
- Limited Lifetime Warranty
Specifications
| Wood Stove Specifications | Napoleon S20 |
| Heat Area | 2500 sq. ft. |
| Overall Dimensions | 34-1/4" H x 26"W x 24-1/2"D |
| Firebox Volume | 1.9 Cubic Feet |
| Max Log Length | 16" |
| Heat Output | 65,000 BTU |
| Emissions | 2.25 g/hr |
| Efficiency | 72% |
| Flue Pipe Diameter | 6" |
| Minimum Chimney Height | 15' |
| Warranty | Limited Lifetime |
| Clearance to Combustibles | Napoleon S20 |
| Corner / Rear / Sides (Single Wall) | 11" / 11-1/2" / 13" |
| Corner / Rear / Sides (Double Wall) | 7" / 9-1/2" / 12" |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
Photos







Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
406-300-1776
