Napoleon S20I Wood Fireplace Insert - Discontinued
Napoleon · 2 documents
PDF
Manual
Napoleon-S20I-Wood-Insert-Manual.pdf · 11.4 MB
PDF
Specifications
Napoleon-S20I-Wood-Insert-Specs-Sheet.pdf · 1.8 MB
About
This product has been discontinued and is no longer available.

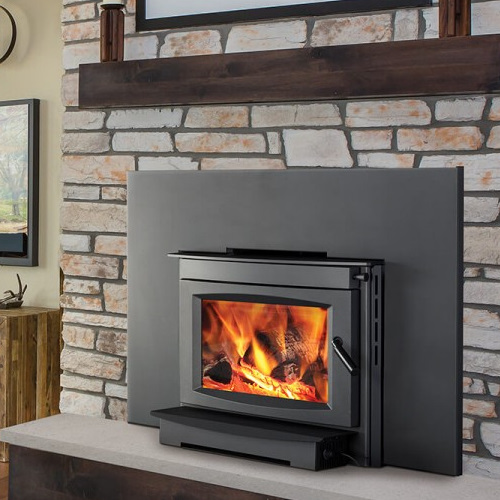

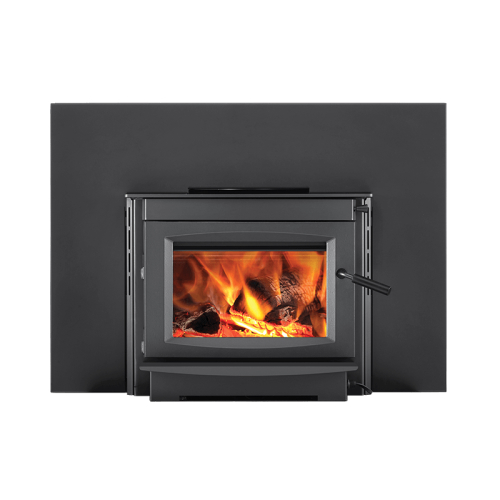

The Napoleon S20I Wood Burning Fireplace Insert is clean and contemporary looking and features EPA 2020 certified high-efficiency wood-burning technology.
Long burn times ensure you enjoy the warmth of the fire without frequent reloading, while an included blower kit quietly circulates heat throughout the home. Clean and contemporary lines give this wood-burning fireplace insert the ability to blend into your current décor while remaining highly efficient.
Features
- 1.9 cu. ft. firebox capacity
- Burn time: 8 hours
- Weighted average emissions rate: 2.25 g/hr
- Weighted average overall efficiency: 72%
- EPA 2020
- Hidden hinges and extra large glass viewing area
- Contemporary wood stove complete with cast door and cast pedestal base
- Dual blower system included
- Includes painted black flashing with 3 ½" depth adjustment for installation versatility
Specifications
| Specifications | S20I Wood Burning Insert |
| Fuel Type | Wood |
| Heating Area | 800-1800 sq. ft. |
| Firebox Volume | 1.9 cu. ft. |
| Max Burn Time | 8 hr. |
| Max Heat Output | 65,000 BTU/h |
| Overall Heat Output Rate Min to Max | 12,944 - 54,127 BTU/h |
| Optimum Efficiency | 72% |
| Average Particulate Emissions | 2.25 g/h |
| Max Log Length | 16" |
| Chimney Diameter | 6" |
| Flue Outlet Diameter | 6" |
| Min Chimney Height | 15 ft. |
| Overall Dimensions ( H x W x D) | 20-1/2"H x 25-3/8"W x 26-1/2"D |
| Overall Dimensions With Backerplate ( H x W x D) | 30"H x 41"W x 26-1/2"D |
| Window Size (H x W) | 15-5/8"H x 9-3/4"W |
| Shipping Weight | 285 lbs. |
| USA standard (Emissions) | EPA 2020 |
| Warranty | Limited Lifetime |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
