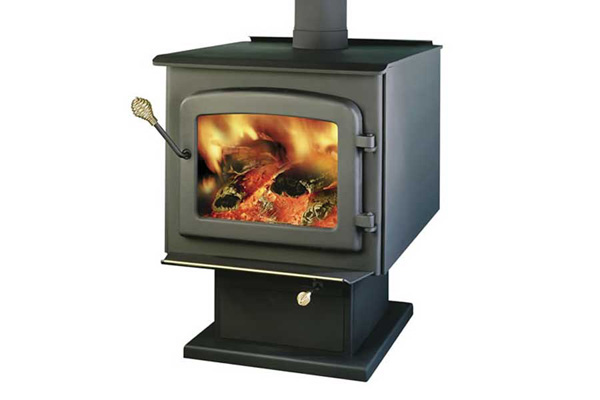

NXT-I Flame Energy Wood Burning Stove - Discontinued
Flame Energy · 1 document
About
This product has been discontinued in the USA as it does not meet 2020 EPA Emission Standards. This page exists for informational purposes only.
Built by SBI (Osburn), these continuously welded, uni-body steel wood stoves are manufactured in North America with North American steel by Flame Energy.
Features
- Model Number: FL-050
- High efficiency wood stove recommended for areas of up to 2000 sq. ft. Metallic black freestanding pedestal model
- Easy-to-access ash drawer
- Air-wash system
- Optimum efficiency : 76%
- May qualify for some government incentives.
- Tested by Intertek as per applicable standards (CSA/UL/ULC and/or others)
Options
- 130 CFM blower with variable speed control (AC03095)
- 3" Fresh air kit (AC01240)
- Blower thermodisc kit (on/off) (AC05530)
- Fresh air kit adapter (3") (AC03070)
Specifications
| Specifications | Flame Energy NXT-I |
| Type of fuel | Wood |
| Recommended surface | 1050 to 2000 sq. ft. |
| Maximum output - EPA test wood | 29400 BTU |
| Maximum output - seasoned cord wood | 80000 BTU |
| Color | Metallic black |
| Exterior dimensions | 25"W x 29"D x 33½"H |
| Exhaust pipe diameter | 6" |
| Centre line of flue outlet to the back | 7 3/16" |
| Centre line of flue outlet to the side | 12 3/8" |
| Type of chimney | 2,100 deg. F (1150 deg. C) |
| Recommended chimney diameter | 6" |
| Minimum chimney height | 12' (3,66 m) |
| Firebox dimensions | 17"W x 19¼"D |
| Log positioning | Depth |
| Maximum log length | 18" |
| Door opening dimensions | 15½"W x 9¾"H |
| Type of door | Glass with cast iron frame |
| Minimum clearances to combustibles * | |
| (Data expressed in inches. 1 inch = 25.4 mm) | |
| Canada / USA | |
| Single walled pipe / Double walled pipe | |
| Back | 14" / 6" |
| Sides | 14" / 12" |
| Corners | 7" / 6" |
| Top** | 84" / 84" |
| Glass surface | 14½"L x 10¼"H |
| Steel thickness | 5/16" |
| Weight | 420 lbs (191 kg) |
| Warranty | Limited lifetime |
| Test standard - safety | ULC S-627, UL 1482 |
| Test standard - emissions | EPA Method 28 |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
