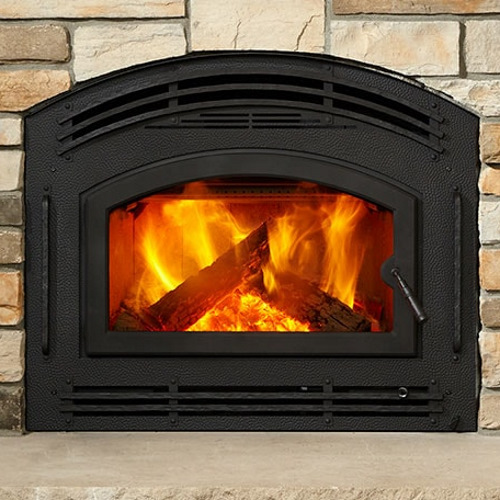

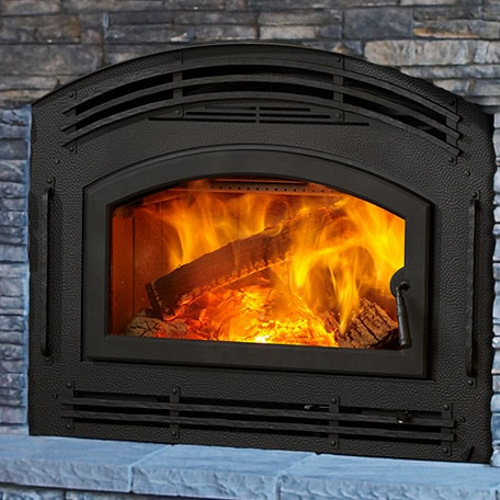

Pioneer II Quadrafire Wood Fireplace
Quadrafire · 2 documents
About
This product cannot be sold online, this page is for informational purposes only.
The Pioneer II Wood Fireplace is a highly efficient heating powerhouse. This high performance EPA Zero Clearance wood fireplace offers hassle-free controls, making the product perfect for everyday use. Relax, and enjoy those long hot burn times, stunning flames, and the quality you expect from Quadra-Fire!
*Revised 7/22/20
The Quadra-Fire system provides maximum heat and a clean burn for performance you can see! The Automatic Combustion Control and the Four-Point Burn System are innovations that make it possible to burn wood with more effectiveness, efficiency and control.
Features
- The Quadrafire Pioneer II heats up to 2,600 square feet!
- 68,200 BTUs, based on climate and home efficiency
- Low emission levels of 1.8 grams per hour, certified by the EPA
- 2.7 cu ft firebox capacity / recommended 22” log length
- 8" Flue minimum 15' chimney
- Up to 10 hours of burn time from each load of fuel
- Automatic Combustion Control
- Lifetime Limited warranty
- Quadra-Fire Four-Point Burn System
- EPA Approval
Specifications
| Specifications | Pioneer II Wood Fireplace |
| Fuel Type | Wood |
| Heating Area | 1000-2600 sq. ft. |
| Firebox Volume | 2.7 cu. ft. |
| Max Burn Time | 10 hr. |
| Max Heat Output | 68,200 BTU/h |
| Optimum Efficiency | 76% |
| Average Particulate Emissions | 1.8 g/h |
| Max Log Length | 22" |
| Flue Outlet Diameter | 8" |
| Minimum Chimney Height | 15' |
| USA standard (Emissions) | EPA 2020 |
| Warranty | Limited Lifetime |
Photos
