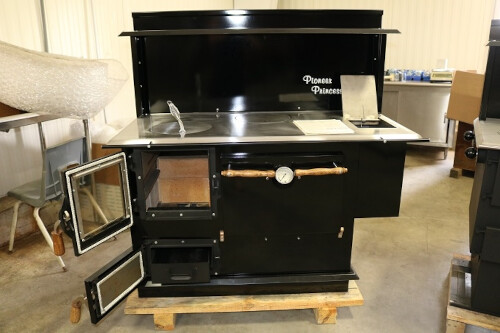

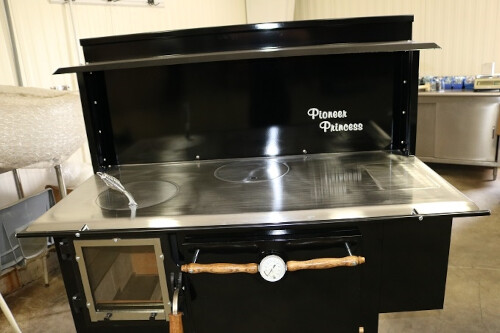

Pioneer Princess Wood Cookstove

Pioneer Stoves · 3 documents

About

The Pioneer Princess has the same basic design as the Pioneer Maid Wood-burning cookstove, but with an added front load firebox door and thermostat control, as well as many more friendly features. She cooks and bakes like a Pioneer Maid, but she's a Princess!

Amish Built and Handcrafted In The USA

Interested in using this stove to heat Domestic Hot Water? Check out the Vaughn Range Boiler for more information on setting up a Domestic Hot Water system.


Features

  • Handmade by Amish Craftsmen
  • Black Porcelain Exterior Finish
  • Front or Top Loading Firebox
  • Front Ash Door for Easy Ash Removal
  • Back Panel and Shelf are Standard
  • Thermostat Controlled
  • Shaker Grates
  • Large Firebox Perfect for Overnight Burns

Note: There is no warranty on bricks, please be aware, throwing wood into the firebox can cause premature damage.

  • Storage Shelf and Backsplash Panel
  • Wooden Knobs and Handles
  • Quality liners
  • Spacious Oven with Spring Load Door Heats Quickly
  • Oven Holds 8 Loaves of Bread
  • Auxiliary Turbo Draft for Easier Fire-Starting
  • Smooth Steel Cook Top
  • Two Large 11" Lids
  • Tightly Welded Steel Construction
  • Stainless Steel Trim
  • Downdraft Efficiency
  • Firebox Lined with Stainless Steel Bricks*
  • Safety Tested to UL / ULC Standards
  • Washington State Approved (learn more here)

*Refractory Bricks available if specified

Note: The Princess model does have damper controls located on the rear of the stove. The stove must be accessible from the left hand side of the stove to provide access to damper controls.

Thermostat Control Features

  • More Even Heat
  • Helps Prevent Overheating
  • Helps Maintain Firebed overnight

Options

  • Flame View Glass Firebox Door
  • Warming Closet
  • Water Coil - Single or Double
  • Water Reservoir Side - Built on
  • Water Reservoir Rear - Attaches to the rear of the stove
  • Stainless Steel Cook Top
  • Black Trim for Front Ledge and Rail
  • Summer Grate

Parts & Accessories

Rear water reservoir

Single or double water coils

Summer grate

UL Thermostat

Shelf Posts

Knob Kit

Oven Thermometer

Oven Handle

Oven Door Spring

Flue Adaptor

Closet Posts

Auto-Thermostat

Auto Thermostat Rod/Coil

Ash Pan

Fire Door Handle

Ash Pan Handle w/Latch

Ash Door Handle

Ash Door Handle Latch

More parts and accessories!

The Pioneer Princess uses the efficient downdraft to burn. Our accessory draft allows you to temporarily introduce air below the grates making it easier to start on cold mornings.

This stove is not mobile home approved nor EPA approved. Cookstoves are nationally exempt from EPA regulations. Learn more about EPA exemptions here.

Specifications

Pioneer Princess With Reservoir / Without Reservoir
FuelWood / Wood
Overall Dimensions54" L x 28-1/2" W x 53-1/2" H / 45" L x 28-1/2" W x 51-1/2" H
Cooking Surface 52" L x 22-1/2" W x 32-1/2" H / 43" L x 22-1/2" W x 32-1/2" H
Oven Dimensions19-1/2" W x 13" H x 22" D / 19-1/2" W x 13" H x 22" D
Firebox Dimensions 18-1/2" L x 13-1/2" W x 18-1/2" D / 18-1/2" L x 13-1/2" W x 18-1/2" D
Door Opening11-1/8"W x 11-1/8"H / 11-1/8"W x 11-1/8"H
Flue Size 7" Round / 7" Round
Flue Location Rear / Rear
Weight700 lbs / 650 lbs
Approximate Area Heated 2000 sq.ft / 2000 sq.ft
Water Reservoir (Optional Accessory Sold Separately)
Side Reservoir 9 gal /
Rear Reservoir 15 gal /
Clearances to Combustibles
Front 48" / 48"
Front Floor Protection16" / R-Value: 0.6 / 16" / R-Value: 0.6
Rear 25" / 25"
Left Side 25" / 25"
Right Side 18" / 18"

Photos
