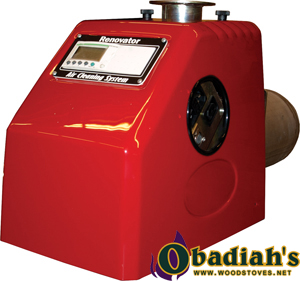

WoodMaster Renovator Fuel Converter - Discontinued
WoodMaster · 4 documents
PDF
Brochure
Renovator-brochurel.pdf · 2.4 MB
PDF
Cleaning Instructions
Force-Cleaning.pdf · 1.1 MB
PDF
Installation Manual
Force-Installation.pdf · 1.1 MB
PDF
Warranty
Force-Warranty.pdf · 237 KB
About
THIS PRODUCT HAS BEEN DISCONTINUED, THIS PAGE IS UP FOR INFORMATIONAL PURPOSES ONLY
An economical solution to your needs, the WoodMaster Renovator Natural Energy heating system burns abundant, renewable and affordable wood pellets. Designed to convert your existing wood/oil boiler or furnace system into a pellet system, the Renovator eliminates the need to replace an old outdated system and gives you the opportunity to Renovate it!
Features
- Two sizes: 20 kW and 30 kW
- The 20 kW unit has approximately 68,000 BTU and can be fitted onto the Force 20
- The 30 kW unit has approximately 102,000 BTU for larger applications
- Automatic ignition for heat on demand
- Air Cleaned Firepot to help keep maintenance to a minimum and retain high efficiency
- Easily connects to existing systems, convert your fossil fuel heat to pellets for independence from foreign oil
- Fully automatic PLC for user friendly operation
- Low maintenance
- Compact design that easily fits into tight areas
- Burn back protection for safety
Specifications
| Specifications | WoodMaster Renovator Fuel Converter |
| Max Current Draw (400 Watt Igniter) | 4.97 Amps @ 120 V, 60 Hz |
| Max Current Draw (800 Watt Igniter) | 8.31 Amps @ 120 V, 60 Hz |
| 400 Igniter (Max Draw) | 3.33 Amps @ 120 V, 60 Hz |
| 800 Igniter (Max Draw) | 6.67 Amps @ 120 V, 60 Hz |
| PLC (Max Draw) | 0.3 Amps @ 120 V, 60 Hz |
| Auger Motor (Max Draw) | 1 Amp @ 120 V, 60 Hz |
| Combustion Fan (Max Draw) | 0.34 Amps @ 120 V, 60 Hz |
| Max Output (20 KW Unit) | 68,000 BTU's |
| Max Output (30 KW Unit) | 102,000 BTU's |
| Vent Connection | 6" |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
