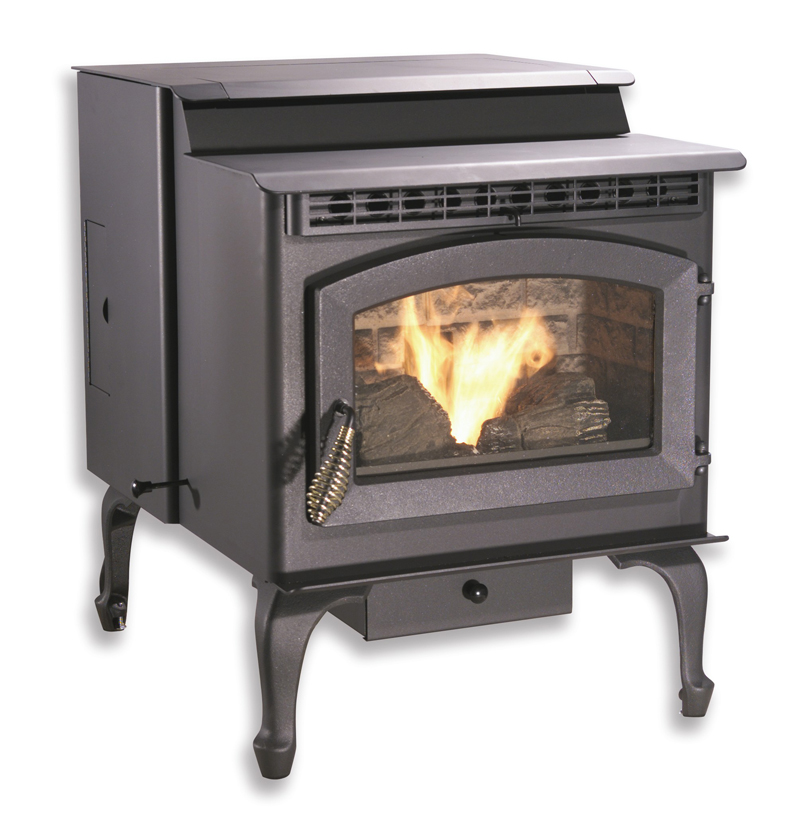

SP23 Sonora Breckwell Pellet Stove
Breckwell · 2 documents
About
The Breckwell Sonora offers high-tech performance with up to 55 hours of heating from one fuel load.
The P23 free-standing stoves are elegant, efficient and easy to install. They can be directly vented through any outside wall or through the ceiling. Unlike a wood stove, they don't need to be at center stage. They fit neatly into alcoves or other small spaces, and are also approved for mobile homes. With a 3" wall clearance, they can go almost anywhere.
P23FS Sonora Features:
- Up to 55 hours of heating from one fuel load
- Convenient ash drawer
- Automatic fuel feed
- Whisper-quiet blowers
- Heavy steel construction
- Limited lifetime warranty
- "Hot Rod" automatic igniter
- Painted Black is Standard
Specifications
| Specifications | P23FS |
| Flue Outlet | 3" |
| Shipping Weight | 185 lbs |
| Burning Time (3) (in hours) | up to 55 |
| Max BTU Input | 42,000 |
| EPA Status (2) | Exempt |
| Hopper Capacity (3) | Up to 55 lbs |
| Approved Installation | Mobile Homes, Alcove, Conventional |
| Dimensions | |
| Width | 22-1/2" |
| Depth | 27-1/2" (including ash lip) |
| Height | 29.5" |
| Clearances | |
| Front (Hearth) | 6" |
| Side Wall | 9" |
| Alcove | 48" High (min) 36" Deep (max) 40-1/2" Wide (min) |
| Corner | 1" |
| Back Wall | 3" |
Photos
Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
406-300-1776
