Osburn Stratford Zero Clearance Fireplace - Discontinued

Osburn · 3 documents

PDF
Diagram
Additional_Diagrams.pdf · 565 KB
Open
PDF
Installation Manual
Installation_and_Operations_Manual.pdf · 10.2 MB
Open
PDF
Steel Faceplate Info
Stratford_Steel_Faceplate_info.pdf · 680 KB
Open

About

Build by one of North America's largest and highly respected manufacturers, the Osburn Stratford Fireplace does not disappoint!

The Osburn Stratford Fireplace is build with efficiency and style in mind, creating an EPA certified fireplace with an average efficiency rate of 77 percent!

This product was discontinued in 2019. This page is provided for informational purposes.



Osburn Stratford

Build by one of North America's largest and highly respected manufacturers, the Osburn Stratford Fireplace does not disappoint!

The Osburn Stratford Fireplace is build with efficiency and style in mind, creating an EPA certified fireplace with an average efficiency rate of 77%, a 2.5 cubic ft. firebox designed for maximum heat output while maintaining easy access through the double cast iron doors, and created with heavy duty carbon steel to provide a high quality, durable product. This decorative and efficient wood fireplace meets EPA particle emissions standards and offers so much more, including a 2.5 cubic foot firebox with easy access through double-cast iron doors. The Osburn Stratford's distinctive style and exceptional heating capacity is sure to inspire you.





Features:

  • 75,000 BTU/hr.
  • Heating capacity: 750 to 2,100 sq.ft.
  • 2.5 cubic foot firebox
  • Log length up to 21"
  • Adjustable handle
  • Self-cleaning glass system
  • Heat-activated twin 150 CFM blower included
  • Approved on DuraVent - DuraTech Pipe
    Tested by OMNI as per applicable standards (CSA/UL/ULC and/or others)
  • Washington State approved with emissions of less than 4.4 g/hr.

Options:

  • Black or brushed nickel plated door overlay
  • Black or brushed nickel plated louver kit
  • Fireguard
  • 3" Adapter for fresh air kit
  • Hot air gravity kit
  • Forced air kit

Specifications

Specifications Osburn Stratford
Type of fuel Wood
Recommended surface area to heat 750 to 2,100 sq.ft.
Blower 2 x 75 CFM
Color Metallic black
Exterior dimensions 37 7/8"W x 29 5/8"D x 47 1/8"H
Recommended chimney diameter6" or (for 7" see the owner's manual)
Centre line of flue outlet to the back10 1/8"
Centre line of flue outlet to the side18"
Minimum chimney height15'
Viewing Area12-1/4” H x 11”W total viewing area 22”W x 12-1/4”H
Firebox dimensions20 3/4"W x 12 1/2''H x 17 7/8"D
Log positioningEast / West or North / South
Maximum log length21"
Door opening dimensions25 3/4"W x 10 7/8"H
Type of doorCeramic glass with cast iron frame and logo
Glass surface11 1/8'' X 12 3/8''
Weight424 lb (192 kg)
WarrantyLimited lifetime
Test standard - safetyULC S-610/UL 127/NFPA 211/CSA B365, as applicable in Canada and in the USA.
Test standard - emissionsEPA/CSA B415.1
BTU's 75,000 MAX
Approved chimney manufacturersBrand / Type
SelkirkUltra-Temp (UT) / 1" Solid Pack
SelkirkSuper Pro (SPR) / 1" Solid Pack
SelkirkSuper Vent (JSC) / 1" Solid Pack
SelkirkHart & Cooley (TLC) / 1" Solid Pack
SelkirkSure-Temp (ST) / 1" Solid Pack
Selkirk CF Sentinel (CF) / 2" Solid Pack
SelkirkSuper Pro 2100 (ALT) / 2" Solid Pack
SelkirkSuper Vent 2100 (JM) / 2" Solid Pack
SelkirkUltimateOne / 1" Solid Pack
Security ChimneyASHT+ / 1" Solid Pack
Security ChimneyS-2100 + / 2" Solid Pack
Dura VentDura Plus HTC / 2" Solid Pack
Dura VentDura Plus / AC Triple Wall
ICCExcel 2100 / 1" Solid Pack
Metal FabTemp Guard / 1" Solid Pack
American MetalHSS / AC Triple Wall
American MetalHS / AC Triple Wall
Olympia ChimneyVentis / 1" Solid Pack
FMI (U.S.A. only)AC / AC Triple Wall
Minimum clearances to combustibles *Inches (1 inch = 25.4 mm)
Sidewall17"
Side facing0"
Mantle (from floor)50"
Back wall0"
Floor0"
Sides0"
Non-combustible surface (side)0"
Non-combustible surface (top)0"
This model is no longer sold new. Its manuals stay here, and we still supply parts.

Photos

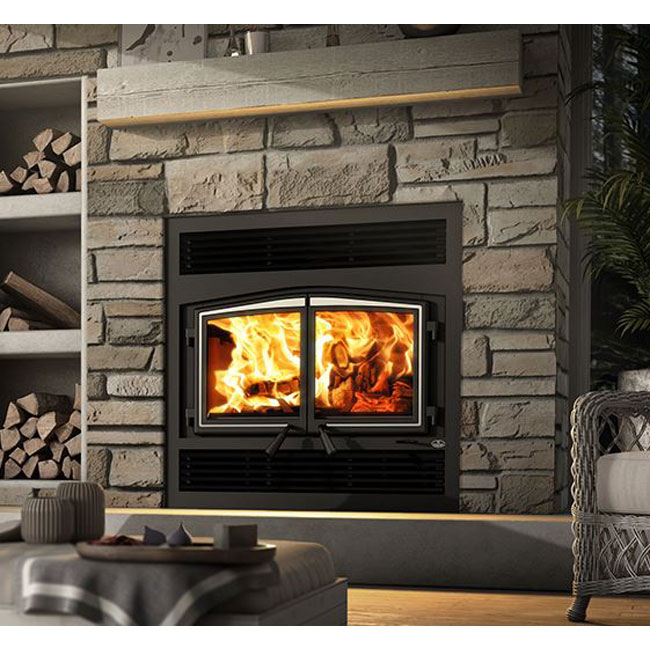

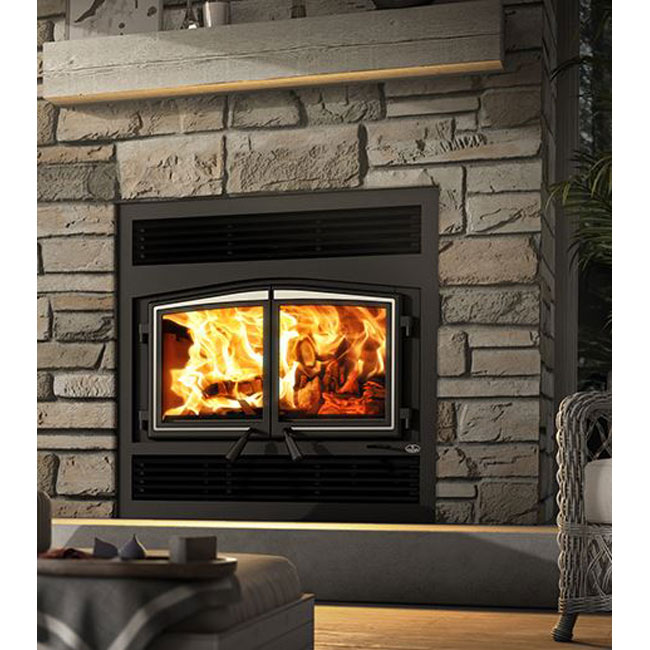

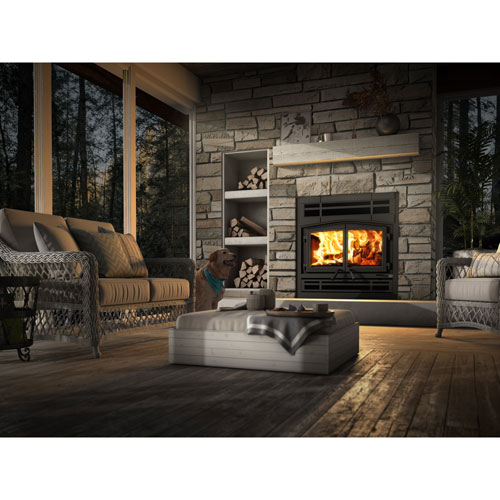

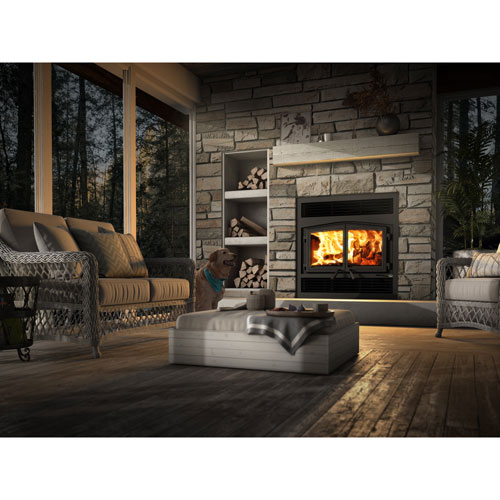

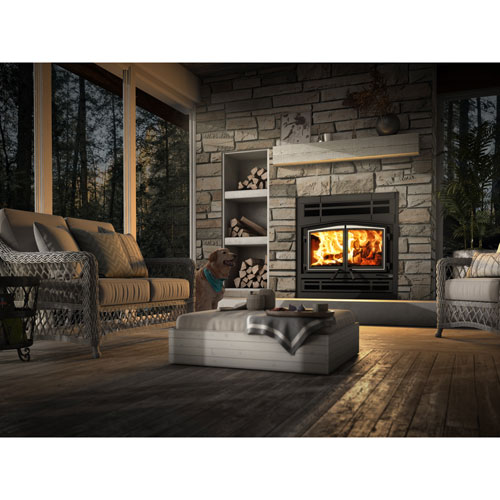

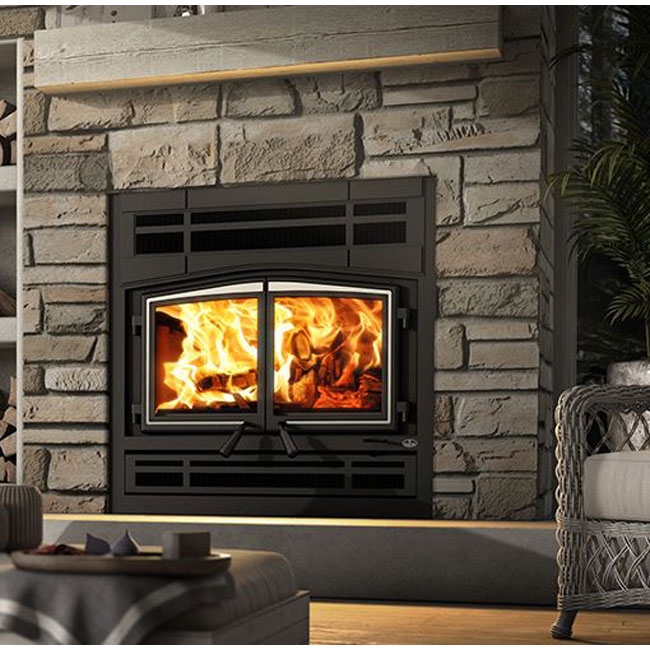

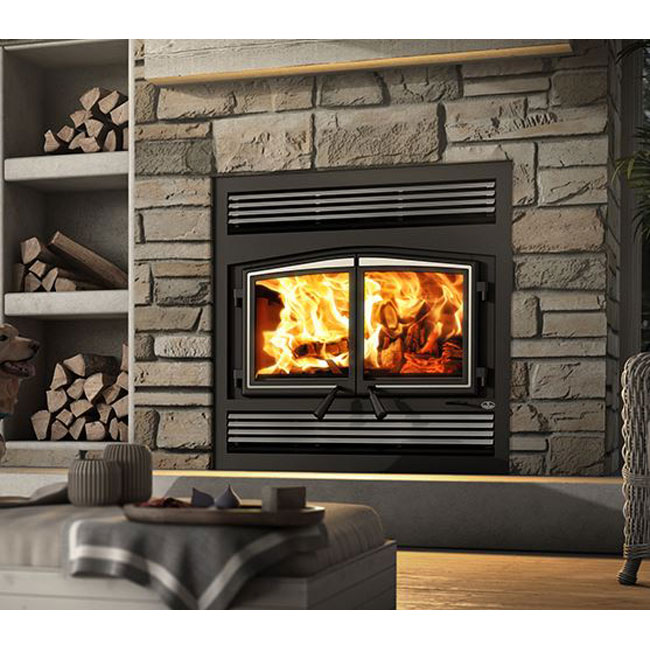

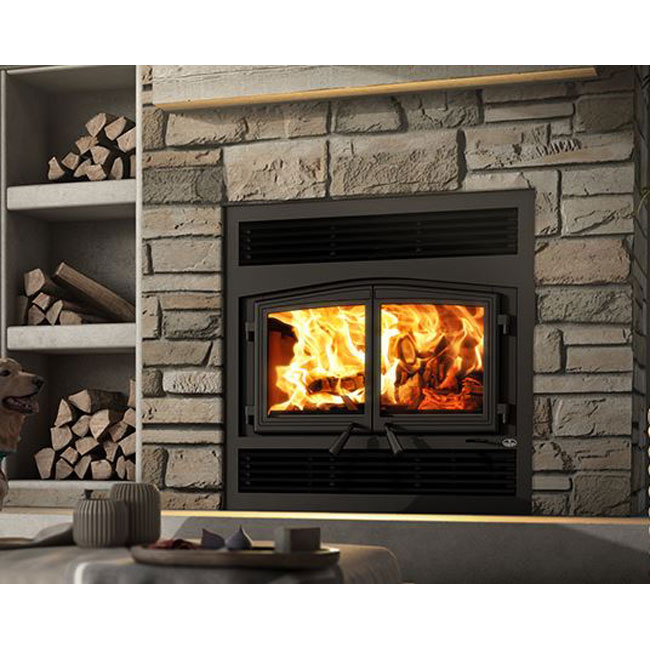

\nOsburn-Stratford-Fireplace-Brushed-Nickel-accents\nOsburn-Stratford-Fireplace-Brushed-Nickel\nOsburn-Stratford-FireplaceOsburn-Stratford-Fireplace-Prairie-style\nOsburn-Stratford-Fireplace-TraditionalOsburn-Stratford-Fireplace-Prarie-Faceplate-Black-Doors\nOsburn-Stratford-Fireplace-Prarie-Faceplate-Brushed-Nickel-DoorsOsburn-Stratford-Fireplace-Traditional-Faceplate-Black-Trim-Black-Doors
