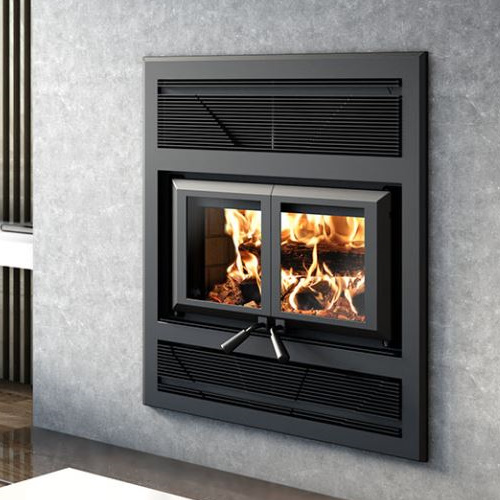

Ventis HE325 High Efficiency Wood Fireplace
Ventis · 2 documents
PDF
Brochure
Ventis-Products-Brochure.pdf · 7.1 MB
PDF
Manual
Ventis-HE325-Wood-Fireplace-Manual.pdf · 10.7 MB
About
The Ventis HE325 High Efficiency Wood Fireplace comes with distinctive louvers in metallic black with a classic molded refractory brick panel. This luxuriously fireplace strike the perfect balance between a decorative and high-efficiency fireplace. With its 72% optimum efficiency, and extremely low emissions with only an average particulate emissions rate of 0.99 grams/hour, it makes a smart choice for the environmentally responsible homeowner.
Features:
- The Ventis HE325 heats up to 2,500 square feet!
- Glass air-wash system
- Baffle type : Ceramic panel
- Flue outlet diameter : 6"
- Optimum efficiency : 72 %
- May qualify for some government incentives.
- Average particulate emissions rate : 0.99 g/h
- High-efficiency certified appliance : Yes, EPA 2020 approved
- Moulded refractory bricks
- Recommended heating area-ft² : 750 - 2,500
- Stainless-steel secondary-air system improving gas combustion
- Combustion Technology : Non-catalytic
- Maximum burn time : 9 h
- Tested and listed as per applicable standards : By an accredited laboratory (CAN/USA)
Specifications
| Specifications | Ventis HE325 Wood Fireplace |
| Fuel Type | Wood |
| Heating Area | 750-2,500 sq. ft. |
| Firebox Volume | 3.0 cu. ft. |
| Max Burn Time | 9 hr. |
| Max Heat Output | 85,000 BTU/h |
| Optimum Efficiency | 72% |
| Average Particulate Emissions | 0.99 g/h |
| Max Log Length | 18" |
| Flue Outlet Diameter | 6" |
| Minimum Chimney Height | 15' |
| Overall Dimensions | 49-1/8"H x 41-3/4"W x 28-7/8"D |
| USA standard (Emissions) | EPA 2020 |
| Warranty | Limited Lifetime |
Photos
Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
406-300-1776
