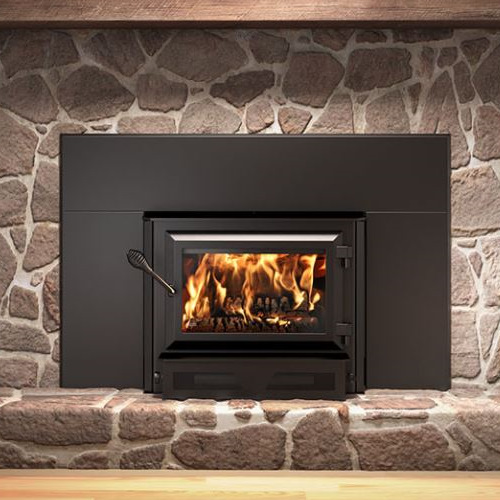

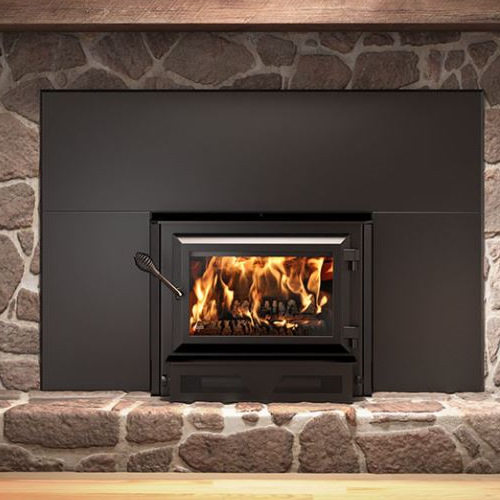

Ventis HEI170 Wood Fireplace Insert

Ventis · 3 documents

About

The Ventis HEI170 Wood Fireplace Insert is a contemporary unit suited for smaller spaces. This high efficiency insert includes a cast iron door, a glass airwash system, and high quality refractory bricks. The clean, angular design of this insert makes it a perfect fit for contemporary décor.

Features:

  • The Ventis HEI170 heats up to 1,800 square feet
  • Glass air-wash system
  • Firebox lined with refractory bricks for better heat distribution
  • Baffle type : High quality vermiculite
  • Flue outlet diameter : 6"
  • Optimum efficiency : 78 %
  • May qualify for some government incentives.
  • Average particulate emissions rate : 1.26 g/h
  • High-efficiency certified appliance : Yes, EPA 2020 approved
  • Steel thickness – top : 5/16"
  • Recommended heating area-ft² : 500 - 1,800
  • Stainless-steel secondary-air system improving gas combustion
  • Combustion Technology : Non-catalytic
  • Maximum burn time : 6 h
  • Tested and listed as per applicable standards : By an accredited laboratory (CAN/USA)
  • Qualifies for Federal Tax Credit

Specifications

SpecificationsVentis HEI170 Wood Insert
Fuel Type Wood
Overall Dimensions 21"H x 27-1/8"W x 22-3/8"D
Heating Area 500-1,800 sq. ft.
Firebox Volume 1.9 cu. ft.
Max Burn Time 6 hr.
Max Heat Output 65,000 BTU/h
Optimum Efficiency 78%
Average Particulate Emissions 1.26 g/h
Max Log Length 18"
Flue Outlet Diameter 6"
Minimum Chimney Height 12'
USA standard (Emissions) EPA 2020
Warranty Limited Lifetime
