Viessmann Pyrot Biomass Wood Boiler

The Viessmann Pyrot Biomass Wood Boiler is a gasification boiler that functions with a rotary combustion chamber creating a controlled effect to produce 85% efficiency for your heating needs.

One of the most innovative water boilers of it's time, the Viessmann Wood Boiler brings burning wood for heat to a new height.  The Pyrot biomass boiler uses a patented rotary combustion chamber design to feed an auger continuously, moving wood fuel onto a moving grate, where gasification of the fuel (under precisely controlled primary air) takes place. The combustible gases then rise into the rotary combustion chamber, where, through spin impulses of the rotation blower, the gases blend with precisely controlled secondary air, resulting in a complete combustion for heat. Equivalent in quality to modern gas combustion, the advanced combustion process of the Pyrot water boiler also keeps emission levels and dust particles to a minimum. Plus, unlike oil or gas, wood is a CO2-neutral, renewable form of energy. Used with a digital, modulating-output control, the Pyrot biomass boiler achieves an efficiency of 85%.

Features

• High efficiency with advanced combustion technology
• Triple-pass heat exchanger
• Modulating output control
• Automatic ignition

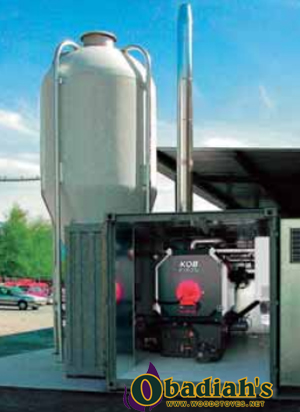

• Available in containerized package
• Fully-automatic rotating combustion wood-fired boiler

Options

• Pneumatic cleaning system
• Flue gas deduster
• Variety of Models
• 30 or 60 psig
