Napoleon Huntsville 1400 Wood Stove - Discontinued — Specifications
Napoleon · Specifications · PDF, 707 KB
About the Napoleon Huntsville 1400 Wood Stove - Discontinued
THIS PRODUCT HAS BEEN DISCONTINUED, THIS PAGE IS UP FOR INFORMATIONAL PURPOSES ONLY.

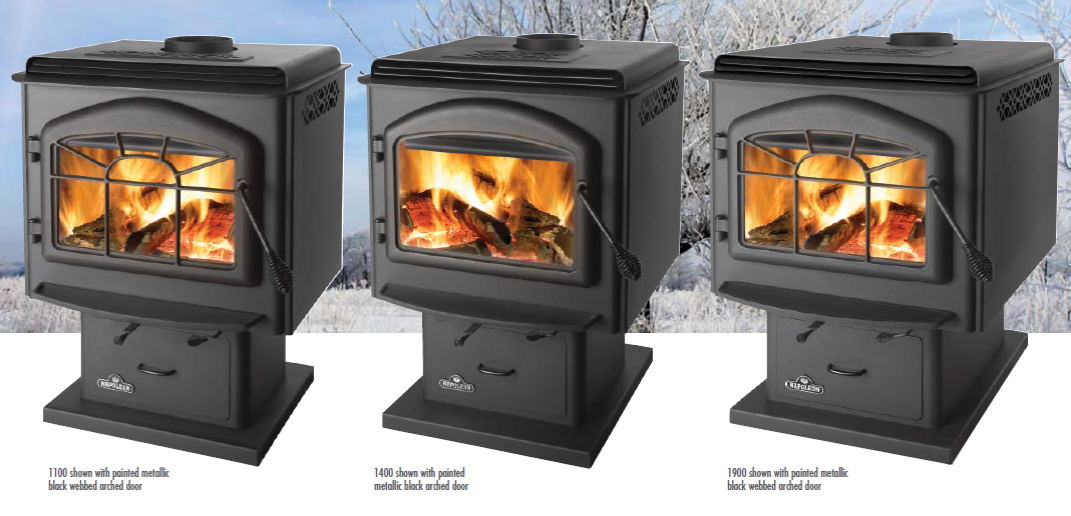

The Napoleon Huntsville 1400 Wood Stove features a solid, dynamic appearance with performance to match. Same great options and wood burning technology as the 1100, with a larger firebox chamber and heating area capacity.
The appealing pedestal base provides a well concealed inlet for combustion air which can be drawn from outside to add even more heating efficiency.
The easy operation of a single lever burn control regulates primary and secondary air establishing a perfect mixture and providing a clean burn.
Wrap around side shields add a delicate balance of elegance and functional practicality helping to disperse heat evenly and reduce clearances to combustibles.
Large viewing area -- air wash in combination with high temperatures keeps the viewing glass clean.
Elegant arched cast iron door.
The large ash dump has a convenient folding lid and dual carrying handles add to the ease of cleaning.
Economical 6" flue assures you of efficiency and cost saving installations

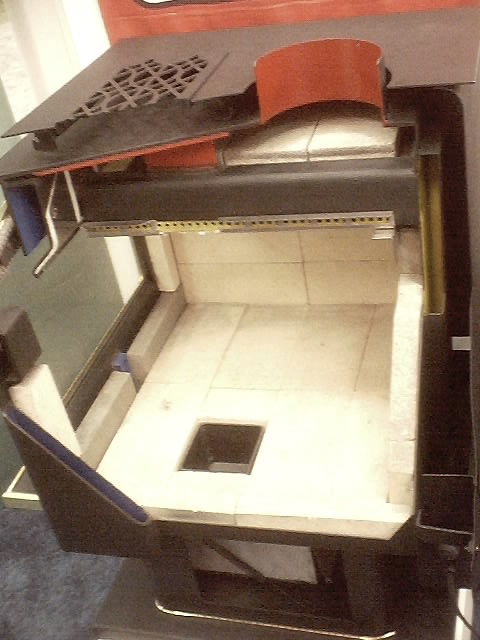

Upper firebox lined with ceramic fiber baffles. The advantage of light weight ceramic is three fold: ease of installation; only two pieces which are lighter and easier to handle; the thermal dynamics of ceramic fiber allows for quicker startup and a hotter, cleaner burn.

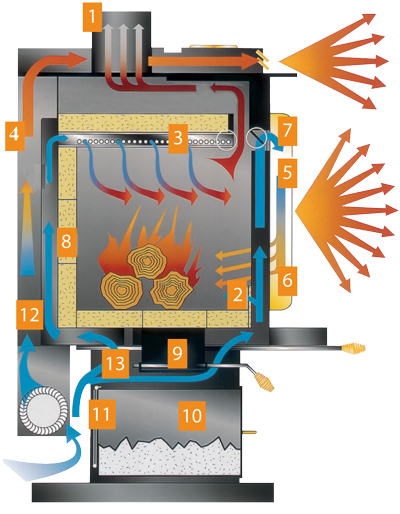

Cool room air is circulated around the firebox, heated and returned to the room.
Non-catalytic high tech design eliminates the need for a delicate ceramic catalytic combustor which can deteriorate over time.
The black trivet, black louvers and black ash pan with lid come standard with the unit.
The Napoleon Huntsville 1400 Wood Stove is available in painted metallic black.
Full canopy top with trivet deflects heat forward into the room.
Backed by the President's Limited Lifetime Warranty.
Specifications
| Specifications | The Napoleon Huntsville 1400 Wood Stove |
| Emissions (grams per hour) | 3.7 |
| Width x Height x Depth | 25.5" x 33.25" x 27" |
| Firebox Chamber (Width x Height x Depth) | 18" x 12" x 18" |
| Firebox Capacity | 2.25 cu. ft. |
| Door Size (height x width) | 14.75" x 19.375" |
| Weight without bricks | 250 lbs |
| Weight of Bricks | 145 lbs |
| Approximate Area Heated* sq. ft. | 1,000 - 2,000 |
| Heat output BTU/HR** | 11,400 - 41,200 BTU'x |
| Heat output BTU/HR (high burn)*** | 55,000 BTU's |
| Burn Time (low fire)* | 7 hours |
| Catalytic Combustor | No |
| Mobile Home approved | Yes |
| R-2000 approved (Canada) | Yes |
| Recommended log size | 12" |
| Max. Log Size | 18" |
| Outside Combustion Air | Yes |
| Flue diameter | 6" |
| Flue size prefabricated | 6" |
| Minimum Clearances with Single Wall Chimney Connector from Stove to Combustibles | |
| Rear | 10" |
| Side | 12" |
| Corner | 6" |
| Minimum Clearances with Approved Double Wall Pipe from Stove to Combustibles | |
| Rear | 6" |
| Side | 10" |
| Corner | 4" |
