Osburn 2200 Osburn Bay Window Wood Stove - Discontinued — Diagram

Osburn · Diagram · PDF, 300 KB

Diagram · PDF · 300 KB
Diagrams.pdf
Download / view PDF ↓

About the 2200 Osburn Bay Window Wood Stove - Discontinued

This product has been discontinued as it does not meet 2020 EPA Emission Standards. This page exists for informational purposes only.

Designed to heat between 800 - 2,000 sq ft. and producing up to 70,000 BTU/hr with an efficiency rate as high as 75%, the Osburn 2200 Woodstove is perfect for a long winter's night.
Osburn is so sure you'll love this stove and it will last that they back it with a limited lifetime warranty! With a couple different options to customize it to fit your style, including either a black or brushed nickel door overly and a black or brushed nickel plated louver and trivet, you are sure to find what you're looking for.

The Osburn 2200 model is reminiscent of the older 1800 model while being designed to be more suitable for intensive continuous use. It's increased the firebox size by 20% giving it a total of 2.3 cu. ft. it allows a steady heat to maintain over longer periods of time, up to 8 hours! The powerful ultra silent 130 CFM blower is an option available to improve it's reach. The bay window has also increased by 20% from the 1800 model, giving you an awe inspiring view of the fire from any angle. Designed to heat between 800 - 2,000 sq ft. and producing up to 70,000 BTU/hr with an efficiency rate as high as 75%, this stove is perfect for a long winter's night.

This stove, designed with a large glass surface ≈ 26" x 10" with an air wash system included to keep the glass clean for better viewing and longevity, is mobile home approved, and has been thoroughly tested and is both EPA approved and UL listed. Osburn is so sure you'll love this stove and it will last that they back it with a limited lifetime warranty! With a couple different options to customize it to fit your style, including either a black or brushed nickel door overly and a black or brushed nickel plated louver and trivet, you are sure to find what you're looking for.





Features: 2200 Osburn Bay Window Wood Stove
  • 75,000 BTU/h.
  • Heating capacity: 800 to 2,000 sq.ft.
  • Firebox volume: 2.3 cu.ft.
  • Maximum log length: 18"
  • Adjustable handle
  • Self-cleaning glass system
  • Ash drawer with safety lid
  • Mobile home approved
  • Tested by OMNI as per applicable standards (CSA/UL/ULC and/or others)


Options:

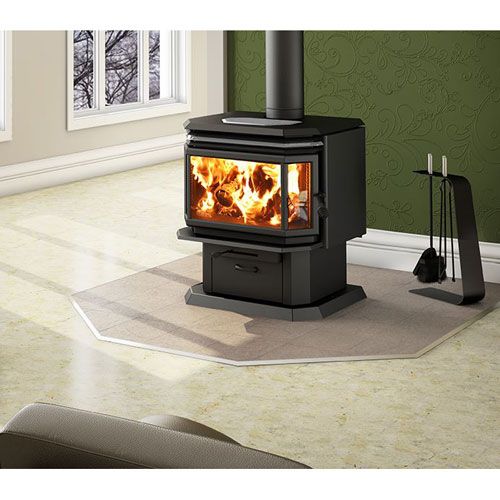

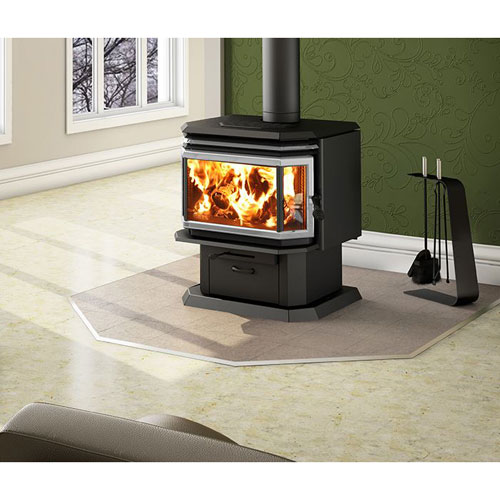

  • Black or brushed nickel plated door overlay
  • Black or brushed nickel plated trivet and trims
  • 130 CFM blower
  • Fresh air kit for mobile home

Specifications

Specifications Osburn 2200
Type of fuel Wood
Recommended surface 800 to 2,000 sq.ft.
Maximum output - EPA test wood 30,400 BTU/h.
Maximum output - seasoned cord wood 75,000 BTU/h.
Color Metallic black
Exterior dimensions
Width26"
Depth26 1/4"
Height32 1/8"
Exhaust pipe diameter 6"
Type of chimney 2,100 deg. F (650 deg. C)
Recommended chimney diameter 6"
Minimum chimney height 12'
Firebox dimensions
Width19.0"
Depth17.0"
Height11.5"
Log positioning Over width
Maximum log length 18"
Door opening dimensions
Width19"
Height9"
Type of door Ceramic glass
Glass surface 265 sq.in.
Weight 399 lbs (181 kg)
Warranty Limited lifetime
Test standard - safety ULC S-627 / UL 1482
Test standard - emissions EPA Method 28
