Osburn Volta EPA Contemporary Pellet Stove - Discontinued — Diagram
Osburn · Diagram · PDF, 162 KB
About the Osburn Volta EPA Contemporary Pellet Stove - Discontinued
This product has been discontinued as it does not meet 2020 EPA Emission Standards. This page exists for informational purposes only.
The Osburn Volta, the newest in the Osburn pellet stove line. The Volta Freestanding Pellet Stove is a quiet and contemporary model with it's innovative components using direct current (DC) now can operate using the optional 24 volt battery system in the event of a power outage. The unit is also easily connectable to solar panels or other secondary source of renewable energy. The Osburn Volta is the complete package; an environmentally friendly heater that delivers power, efficiency, reliability and cleanliness.
.
The Osburn Volta is EPA approved and meets Washington State Standards
The newest pellet stove in the Osburn line, the Volta is a quiet, contemporary model with innovative componats that use direct current opening the ability to operating using an optional 24 volt battery system in case of a power shortage. The Volta is easily connectable to secondary sources of renewable energy such as solar panels. The stove is environmentally friendly, efficient, reliable, and clean; it really is the complete package.
Osburn Volta Pellet Stove Features
- Model # : OP00055
- High-efficiency EPA certified appliance
- Recommended heating area (sq.ft.) : 500 - 2,000
- Electronic igniter
- Thermostatic or manual mode
- Premium quality convection blower included (CFM) : Axial 220 PCM/CFM
- Approved for a mobile home installation
- Color : Metallic black
- Approved for an alcove installation
- Easy-to-access ash drawer
- Glass air-wash system
- Optimum efficiency : 75 %
- Average particulate emissions rate : 2.5 g/h
- Baffle type : Stainless steel
- Burn rate : 1.2 - 5.3 lb/h
- Combustion Technology : Bottom-feed
- Maximum burn time : 50 h
- Controlled Combustion
- Hopper capacity : 60 lb (27 kg)
- Flue outlet diameter : 3"
- Number of intensity levels : Variable
- Maximum Capacity : 45,600 BTU/h
- Minimum Capacity : 10,000 BTU/h
- Tested and listed as per applicable standards by : By an accredited laboratory (CAN/USA)
Options
Specifications
| Specifications | Osburn Volta Pellet Stove |
| Overall dimension (Height) | 41 1/8" |
| Overall dimension (Width) | 21 3/4" |
| Overall dimension (Depth) | 28 1/8" |
| Glass surface – dimensions | 5 3/4"W X 10"H |
| Average CO | 111.8 g/h |
| Fuel type | Pellet (Premium grade or better) |
| Door type | Single, glass with steel frame |
| Glass type | Ceramic glass |
| Centre line of flue outlet to the floor | 14 5/8" |
| Canadian standard (safety) | ULC S627 |
| USA standard (safety) | UL 1482, ASTM E1509 |
| Weight | 411 lb (186 kg) |
| Recommended heating area | 500 - 2,000 (sq.ft.) |
| Approved for a mobile home installation | Yes |
| Optimum efficiency | 75 % |
| Average particulate emissions rate | 2.5 g/h |
| Baffle type | Stainless steel |
| Burn rate | 1.2 - 5.3 lb/h |
| Combustion Technology | Bottom-feed |
| Maximum burn time | 50 h |
| Hopper capacity | 60 lb (27 kg) |
| Flue outlet diameter | 3" |
| Number of intensity levels | Variable |
| Maximum Capacity | 45,600 BTU/h |
| Minimum Capacity | 10,000 BTU/h |
| Warranty | Limited lifetime |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |

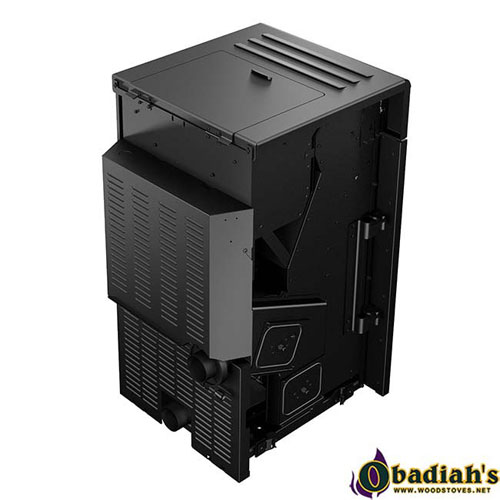

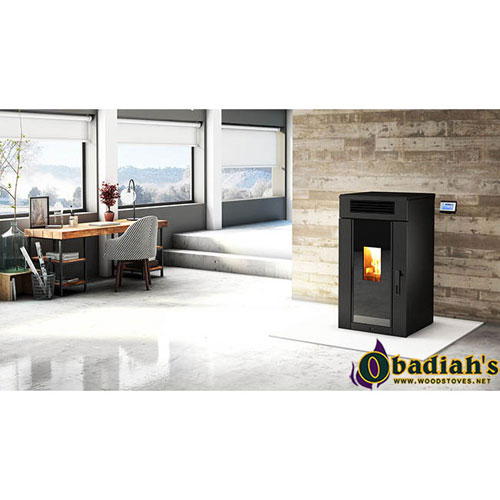

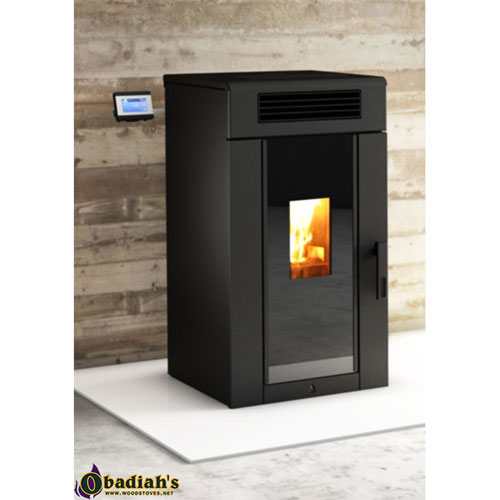

Photos
