About the 1600 Osburn Wood Stove - Discontinued
This product has been discontinued as it does not meet 2020 EPA Emission Standards. This page exists for informational purposes only.
Not only is this stove impressive regarding it's technologies and features, but it includes options for either cast iron legs or a pedistal, along with the choice of black doors or brushed nickel plated doors to give you the power to create the style that is perfect for you.
The Osburn 1600 is truely unique with it's impeccable balance of power, efficency, and cleanliness.Designed to heat an area of up to 1,800 sq ft. and product up to 65,000 BTU/hr. with an optimum effciency rate of 80% it tops it all off with an impressive emensly low emissions rate of as low as .87 g/hr.! Way below EPA standards to ensure you are getting the best!
Not only is this stove impressive regarding it's technologies and features, but it includes options for either cast iron legs or a pedistal, along with the choice of black doors or brushed nickel plated doors to give you the power to create the style that is perfect for you.
Features:
- Certified to EPA standards - 4.4 g.hour weighted avg.
- Non-catalytic
- 2.0 cubic foot firebox
- 13½ height under baffle
- Built in ash pan on pedestal & leg models
- Outside combustion air
- Self cleaning glass door
- Provides more heat, uses less wood
- Firebrick lined and removable baffle
- Mobile home approved
Options:
- Black Pedestal with ash pan
- Black or Nickel plated door overlay
- Cast black or nickel plated leg models with ash pan
- Outside combustion air
- Rear mounted fan
Specifications
| Osburn 1600 Specs | |
| Height | 32 3/8" |
| Width | 25" |
| Depth | 26 1/2" |
| Flue Size | 6" |
| Area Heated | 500 -1,800 sq. ft. |
| EPA BTU's | 42,600 |
| Max BTU's | 65,000 |
| Door Opening | 15.5" W x 8.5" H |
| Firebox Volume | 2.0 cubic feet |
| Firebox Dimensions | 18" W x 12" H x 15" |
| EPA Emissions average | 4.4 grams hour |
| Glass Viewing Area | 125 sq. inches |
| Clearances to Combustables | |
| Backwall | 15" |
| Sidewall | 17" |
| Corner | 12" |

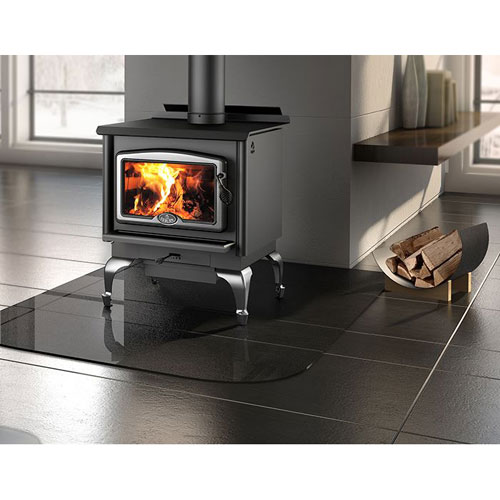

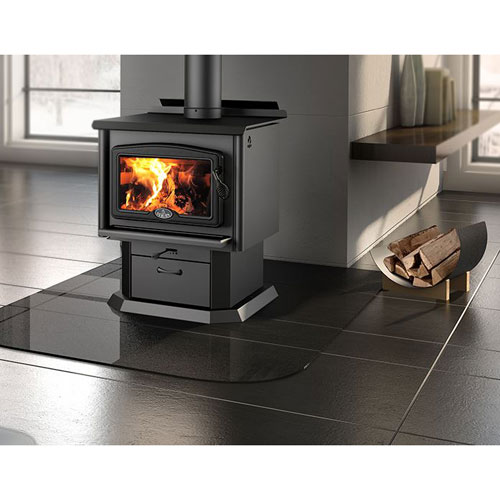

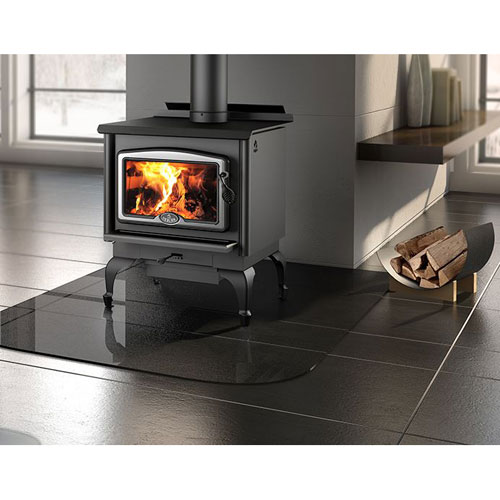

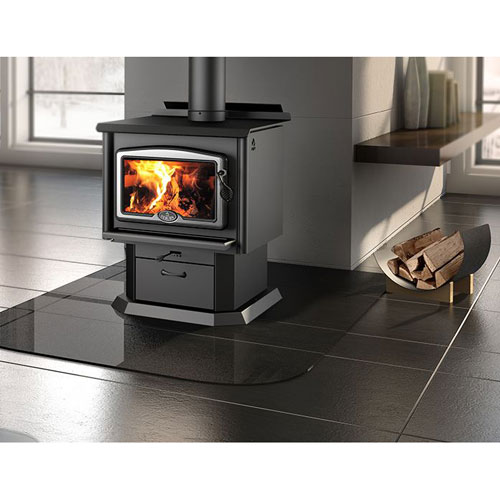

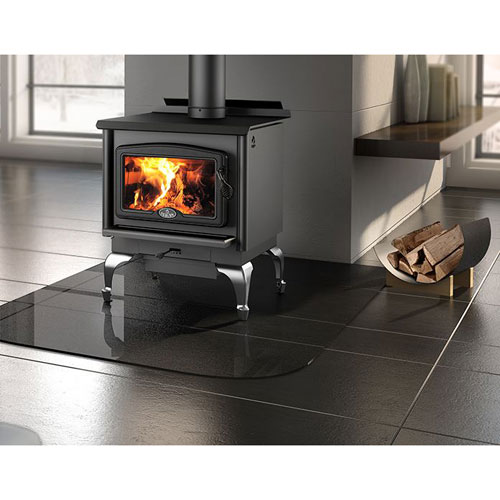

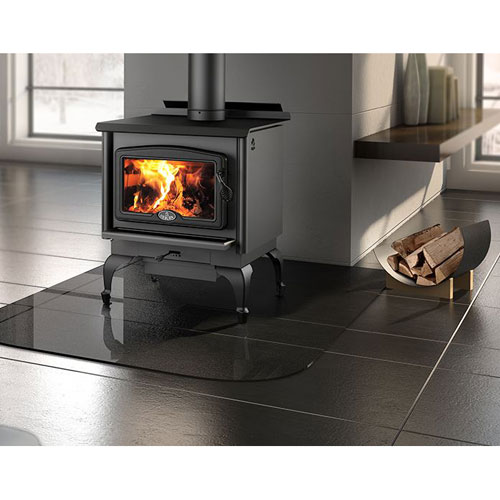

Photos
