About the Osburn Horizon EPA Wood Fireplace

The Horizon Wood Fireplace by Osburn is designed with a combination of Efficiency and Clean heating. With its impressive firebox measuring 4.28 cubic ft. (one of the largest on the market) it is capable of holding up to 60 lbs! The Horizon Zero Clearance Wood Fireplace provides a large viewing area, so you can cozy up to the fire during those cold winter nights.

Features:

The Horizon Fireplace heats up to 2,800 sq. ft.
Max burn time of up to 11 hrs!
69.7% Efficiency
Moulded Refractory Bricks - For better heat distribution
Glass Airwash System
Stainless Steel Secondary Air system - To improve gas combustion
EPA and UL approved
Premium quality blower included ( 176 CFM)
Limited Lifetime Warranty

Specifications

Product Specifications Horizon Wood Fireplace
Fuel Type	Wood
Heating Area	1000-2800 sq. ft.
Firebox Volume	4.28 cu. ft.
Max Burn Time	11 hr.
Max Heat Output	95,000 BTU/h
Optimum Efficiency	69.7%
Average Particulate Emissions	1.6 g/h
Max Log Length	25"
Flue Outlet Diameter	8"
Minimum Chimney Height	15'
Overall Dimensions	43-13/8"H x 50-3/4"W x 31-3/4"D
USA standard (Emissions)	EPA 2020
Warranty	Limited Lifetime

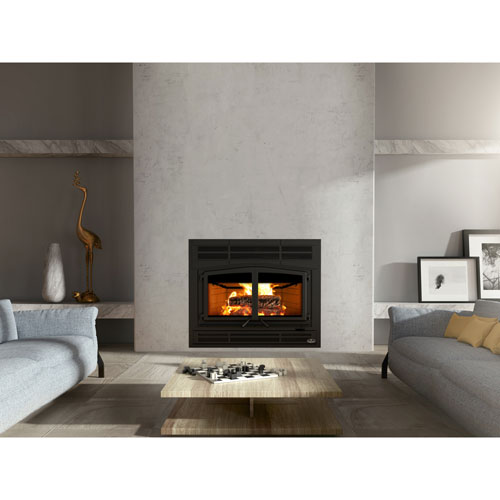

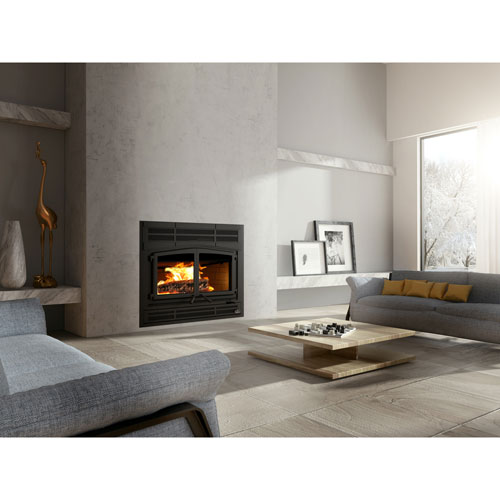

Photos
