Osburn Soho Wood stove - Discontinued — Owner's Manual
Osburn · Owner's Manual · PDF, 8.5 MB
About the Osburn Soho Wood stove - Discontinued
This product has been discontinued as it does not meet 2020 EPA Emission Standards. This page exists for informational purposes only.
Clean and Contemporary are the keys to this ecological woodstove. The Soho offers many personalizing features to satisfy your unique style and maintain the quality and efficiency held steadfast by Osburn. The Soho's sleek and ultra modern design makes a perfect center piece in your contemporary home. This ecological heating machine will entrance those seeking an efficient and contemporary design.
The Osburn team proudly offers you the Soho! This small stove with a modern flair features a remarkable view of the fire light, with an easy to operate door latch system complimenting the clean lines of the Soho appearance. Personalize the Soho to fit your unique taste with the two pedestal options, which double as log storage for convenient access, and the modular side panels that are available in three different finishes.
Osburn will not let you down with this little number. The Soho's sleek and ultra modern design makes a perfect center piece in your contemporary home. Along with the optional 130CFM blower and thermodisc, this wood stove is factory ready for the Fresh Air Connection Kit with the need for a special adaptor. The Osburn Soho Wood stove brings you all the quality and efficiency that you have come to love and expect from Osburn. This ecological heating machine will entrance those seeking an efficient and contemporary design.
- EPA Certified
- Glass Airwash system
- Refractory Bricks
- Stainless steel secondary-air system to improve gas combustion
- Optional 130CFM Blower with speed control
| Single Wall Pipe | Double Wall Pipe | |
|---|---|---|
| A | 15" | 12" |
| B | 16" | 16" |
| C | 8" | 6" |
| D | 18 3/4" | 15 3/4" |
| E | 24 3/4" | 24 3/4" |
| F | 17 3/4" | 15 3/4" |
| K | 48" | 48" |
| L | 84" | 84" |
Maintenance
* Be sure to check out the owners manual for information on proper heating appliance maintenance to ensure maximum performance of your new unit!
Specifications
| Specifications | Osburn Soho Woodstove |
| Fuel | Wood |
| Height | 32 7/8" |
| Width | 28 1/2" |
| Depth | 20" |
| Weight | 326 lb |
| Firebox capacity | 1.7 cu ft. |
| Firebox Height | 12 1/4" |
| Firebox Width | 18 1/8" |
| Firebox Depth | 13 1/2" |
| Heating Capacity | 500-1,500 sq ft |
| Emissions | 4.2 g/hr |
| Efficiency | 75.3% |
| Steel Thickness | 5/16" |
| Max Log Length | 17" |
| Chimney Diameter | 6" |
| BTU's | 55,000/hr |

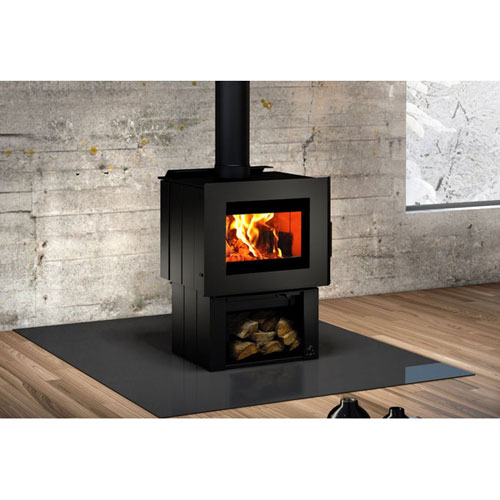

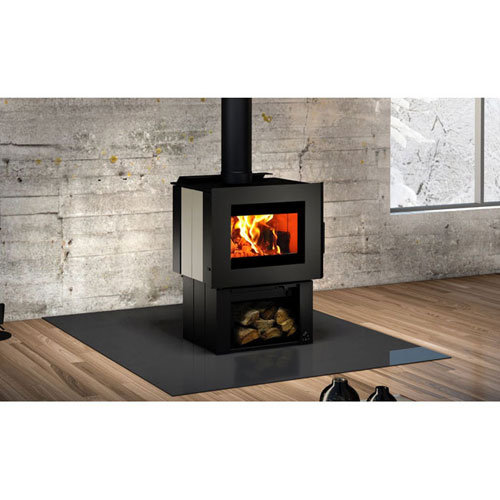

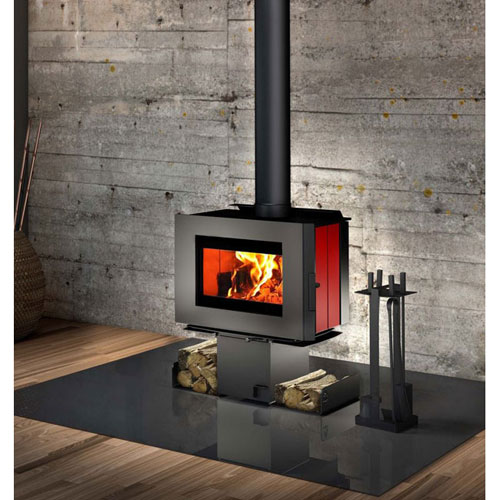

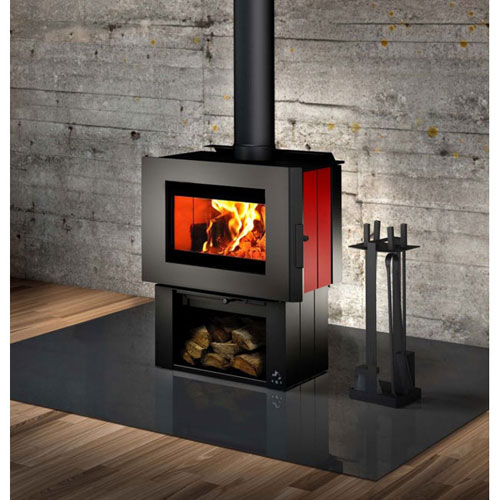

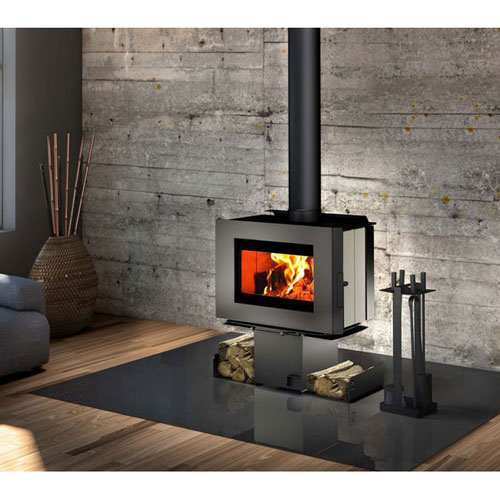

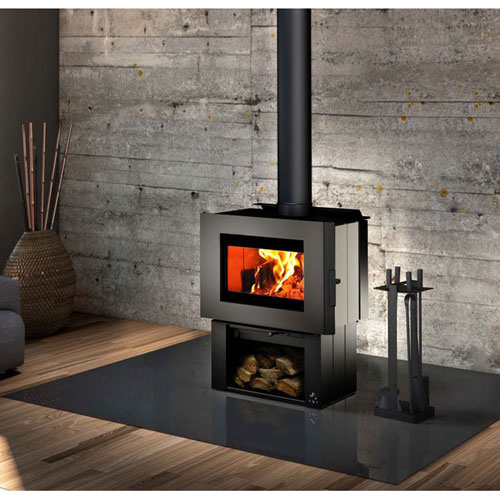

Photos






Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
