Regency Horizon HZ965E Contemporary Direct Vent Gas Fireplace — Installation Manual
Regency · Installation Manual · PDF, 9.1 MB
About the Regency Horizon HZ965E Contemporary Direct Vent Gas Fireplace
This product is no longer available through Obadiah's. This page is for informational purposes only.
Designed to suit contemporary environments, the Regency Horizon HZ965E features an inset style that allows finish materials to be installed right up the fireplace's edges for a clean face look. With one of the largest viewing areas offered and features including porcelain enamel inner panels and a glass crystal firebed all serve to draw the viewer's eye to the shimmering flames. Mood and comfort can be set using a convenient hand-help remote control with the flame and heat adjustable by up to 68% making the HZ965E an excellent choice for modern living spaces.
Create a glowing centerpiece in your home with the Regency Horizon HZ965E gas fireplace. With one of the largest viewing areas (965 sq. inches) in the Regency collection, the HZ965E offers an impressive view of the flames through heat radiating ceramic glass. A wide range of accessories and finish options make this fireplace an excellent choice for larger modern living spaces.
Features
- Tall, clean design with disappearing ceramic glass.
- Deep firebox lined with black enamel panels that further amplify the vibrant flames.
- Impressive, tall flames that sit on a contemporary linear fire bed of crystals.
- High radiant heat output delivered through a 965 square inch ceramic glass
- Front and rear burner control, allows for a 68% heat turn down value
- Proflame remote control (included)
- Safety screen (included)
- Electronic Ignition with SureFire switch
- Direct vent technology protects your in-home air quality
- Operates on natural gas or propane
Options
- Optional heat distribution kit enables quiet and effective heat transfer to adjacent rooms
- Versatile venting kits provide multiple venting options where typical vent configurations are not approved
Specifications
| Model | HZ965E-NG10 / HZ965E-LP10 |
| Fuel Type | Natural Gas / Propane |
| Minimum Supply Pressure | 5” W.C. (1.25 kPa) / 12” W.C. (2.98 kPa) |
| Manifold Pressure - High | 3.5” W.C. (0.87 kPa) / 10” W.C. (2.48 kPa) |
| Manifold Pressure - Low | 1.6” W.C. (0.41 kPa) / 6.4” W.C. (1.59 kPa) |
| Orifice Size -Altitude 0-4500 ft. | #40 DMS / #53 DMS |
| Minimum Input Altitude 0-4500 ft. (0-1372m) | 16,000 BTU/h (4.68 kW) / 17,000 BTU/h (4.98 kW) |
| Maximum Input Altitude 0-4500 ft. (0-1372m) | 48,000 BTU/h (14.07 kW) / 48,000 BTU/h (14.07 kW) |
| Vent Sizing | 5" x 8" / 5" x 8" |
| Warranty | Limited Lifetime / Limited Lifetime |
| EnerGuide Rating (Canada only) | 63.11% / 63.46% |
| Efficiency (steady state) | 79% / 79% |
| Viewing Area | 965 Sq. Inches / 965 Sq. Inches |

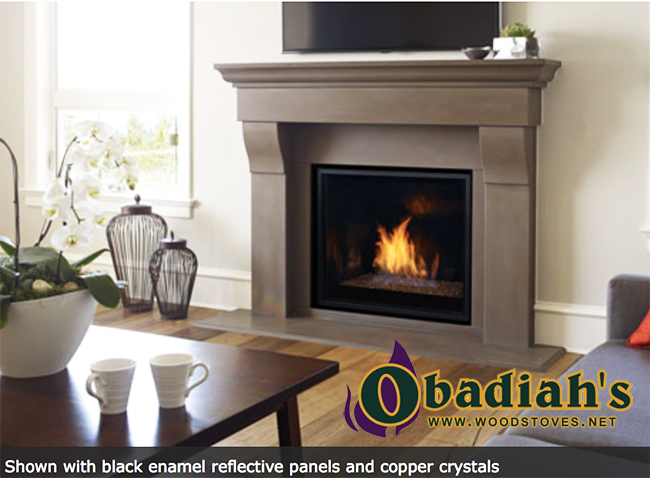

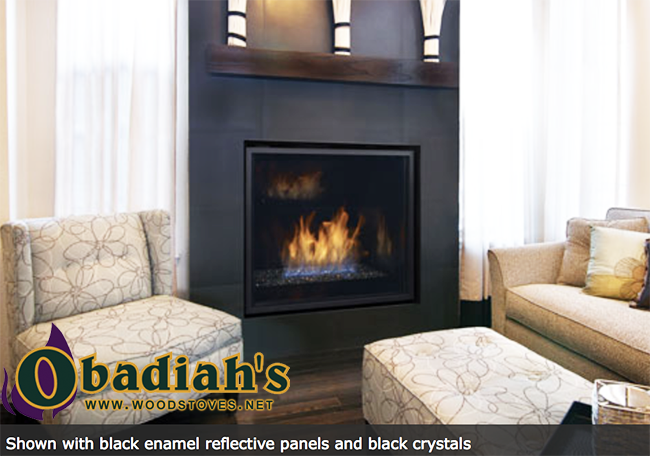

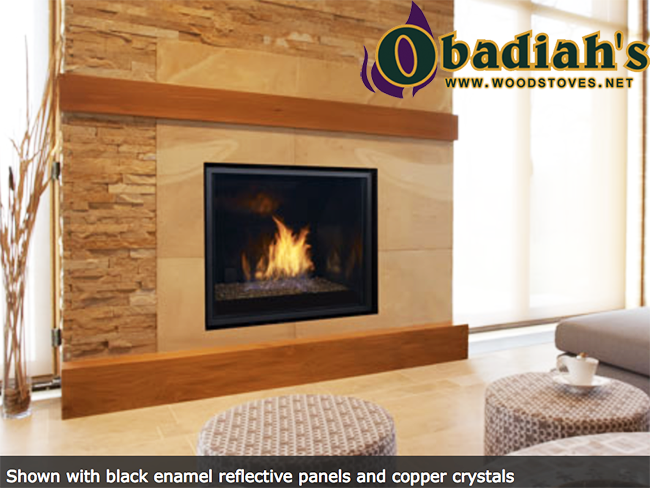

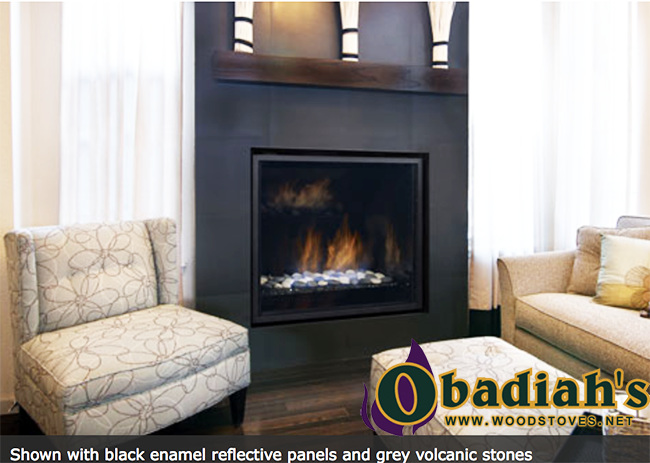

Photos
Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
