Regency Hampton HI2450 Wood Fireplace Insert — Manual

Regency · Manual · PDF, 4.7 MB

Manual · PDF · 4.7 MB
Regency-Hampton-HI2450-Wood-Insert-Manual.pdf
Download / view PDF ↓

About the Regency Hampton HI2450 Wood Fireplace Insert

This product is no longer available through Obadiah's. This page is for informational purposes only.

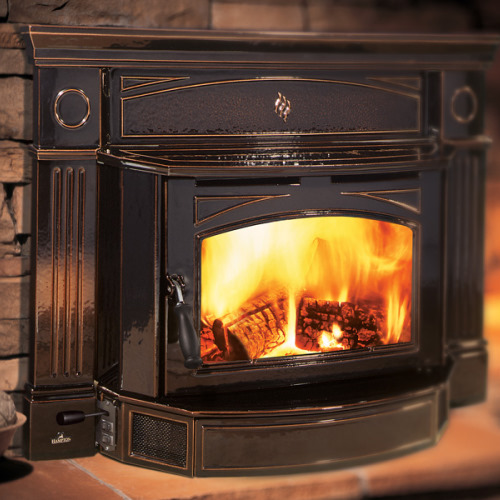

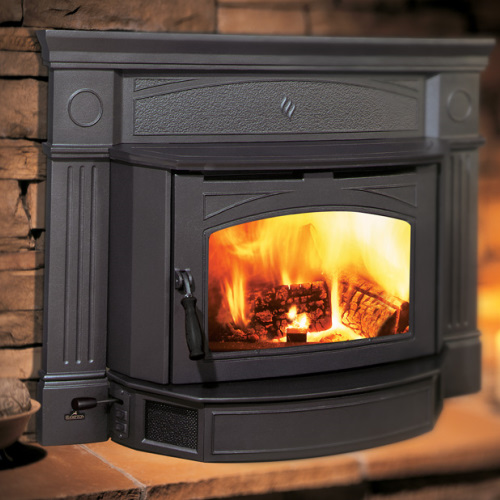

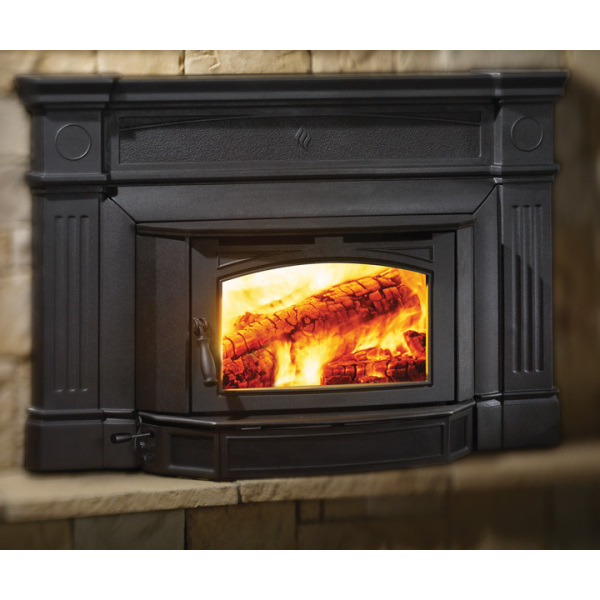

The Hampton HI2450 Wood Fireplace Insert installs easily into your existing fireplace, adding the timeless beauty of cast iron while eliminating drafts from an open fireplace. Choose from two colors, in different finishing to compliment your existing decor, while decreasing your heating bills and increasing the value of your home.

Features

  • The Hampton HI2450 heat up to 3,000 square feet!
  • Large fire viewing area
  • Heat radiating ceramic glass
  • Cast iron exterior
  • Wood-finished handle
  • Heavy duty cast hinges
  • Solid forged steel adjustable cam lock
  • Side mounted air adjustment
  • High performance brick-lined firebox
  • Non-obtrusive air wash curtain
  • Dual-burn design
  • Limited Lifetime Warranty

Specifications

SpecificationsRegency Hampton HI2450 Wood Fireplace Insert
Fuel Type Wood
Heating Area Up to 3,000 sq. ft.
Firebox Volume 2.3 cu. ft.
Max Burn Time 10 hr.
Max Heat Output 75,000 BTU/h
Optimum Efficiency 72%
Average Particulate Emissions 1.4 g/h
Max Log Length 18"
Flue Outlet Diameter 6"
Min Chimney Height 15'
Minimum Fireplace Opening 21-1/2"H x 25"W x 17-1/2"D
Viewing Area 180 sq. in.
USA standard (Emissions) EPA 2020
Warranty Limited Lifetime

Photos

Regency Hampton HI2450 Wood Fireplace Insert — ManualRegency Hampton HI2450 Wood Fireplace Insert — ManualRegency Hampton HI2450 Wood Fireplace Insert — ManualRegency Hampton HI2450 Wood Fireplace Insert — Manual
