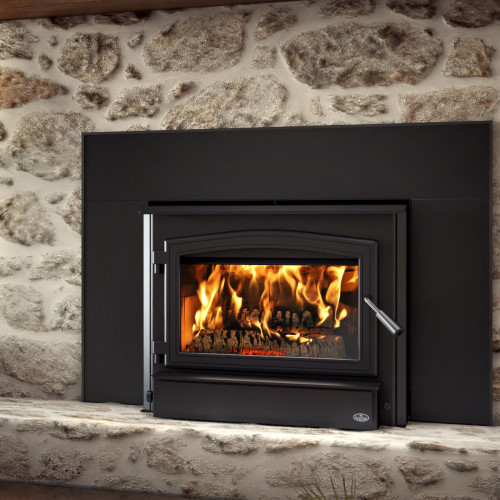

Osburn 3500 Wood Insert
Osburn · 3 documents
PDF
Manual
Osburn-3500-Wood-Insert-Manual.pdf · 7.2 MB
PDF
Specifications
Osburn-3500-Wood-Insert-Dimensions.pdf · 618 KB
PDF
Tax Certificate
Osburn-Tax-Credit-Certificate-2023-2032.pdf · 650 KB
About
The Osburn 3500 Wood Insert combines power, efficiency and safety. With its amazing features and sober lines that give way to one of the largest glass surfaces in its category, this insert will blend perfectly with the architecture of your home. Its flawless design reveals all the Canadian know-how in terms of alternative heating and will quickly become the house favorite. No harsh winter can resist it!
Qualifies for Federal Tax Credit!
Features:
- The Osburn 3500 heats up to 2,700 square feet!
- Heating capacity up to 110,000 BTU
- 3.5 cubic foot firebox
- Air-wash system
- Log loading over width
- Maximum log length of 22 inches
- Heavy duty cast iron door and cast iron door overlay
- 130 CFM heat-activated and ultra-quiet crossflow blower
- Flue pipe diameter: 6"
- Qualifies for IRS Tax Credit
Specifications
| Specifications | Osburn 3500 Wood Insert |
| Fuel Type | Wood |
| Overall Dimensions | 24-7/8"H x 30-3/8"W x 29"D |
| Heating Area | 1000-2700 sq. ft. |
| Firebox Volume | 3.5 cu. ft. |
| Max Burn Time | 10 hr. |
| Max Heat Output | 110,000 BTU/h |
| Optimum Efficiency | 77% |
| Average Particulate Emissions | 1.32 g/h |
| Max Log Length | 22" |
| Flue Outlet Diameter | 6" |
| Minimum Chimney Height | 15' |
| USA standard (Emissions) | EPA 2020 |
| Warranty | Limited Lifetime |
Photos


Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
406-300-1776
