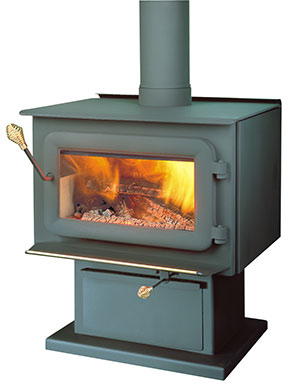

XTD 1.5 Flame Energy Wood Burning Stove - Discontinued

Flame Energy · 1 document

About

Built by SBI (Osburn), these continuously welded, uni-body steel wood stoves are manufactured in North America with North American steel by Flame Energy.

THIS PRODUCT HAS BEEN DISCONTINUED, THIS PAGE IS UP FOR INFORMATIONAL PURPOSES ONLY



This wood-burning stove from Flame is ideal if you don't have a fireplace in your house and you're looking for simple, traditional heat. With a firebox measuring 1.8 cubic feet and holding logs up to 19 inches long, this allows the stove to output up to 60,000 BTUs and can effectively heat up to 1,600 square feet of space. The convenient ash drawer at the base of the pedestal which allows easy cleanup and maintenance makes this a nice and easy stove to have in your home.

Features

  • Model Number: FL-043
  • High-efficiency wood stove recommended for areas of up to 1600 sq. ft.
  • A metallic black freestanding pedestal model
  • Easy-to-access ash drawer
  • Air-wash system
  • Mobile home approved
  • Optimum efficiency: 75%
  • May qualify for some government incentives.
  • Tested by Intertek as per applicable standards (CSA/UL/ULC and/or others)

Options

  • 130 CFM blower with variable speed control (AC03095)
  • 3" Fresh air kit (AC01240)
  • Blower thermodisc kit (on/off) (AC05530)
  • Fresh air kit adapter (3") (AC03050)

Specifications

SpecificationsFlame Energy XTD 1.5
Type of fuelWood
Recommended surface850 to 1600 sq. ft.
Maximum output - EPA test wood34000 BTU
Maximum output - seasoned cord wood60000 BTU
ColorMetallic black
Exterior dimensions25½"W x 22¾"D x 29¾"H
Exhaust pipe diameter6"
Centre line of flue outlet to the back6 5/8"
Centre line of flue outlet to the side12 13/16"
Type of chimney2,100 deg. F (1150 deg. C)
Recommended chimney diameter6"
Minimum chimney height12' (3,66 m)
Firebox dimensions21¼"W x 14"P
Log positioningWidth
Maximum log length19"
Door opening dimensions17¾"W x 8¼"H
Type of doorGlass with cast iron frame
Minimum clearances to combustibles *
(Data expressed in inches. 1 inch = 25.4 mm)
Canada / USA
Single walled pipe / Double walled pipe
Back14" / 6"
Sides12" / 11"
Corners7" / 5"
Top**84" / 84"
Glass surface16"W x 7¾"H
Steel thickness¼"
Weight322 lbs (147 kg)
WarrantyLimited lifetime
Test standard - safetyULC S-627, UL 1482
Test standard - emissionsEPA Method 28
This model is no longer sold new. Its manuals stay here, and we still supply parts.
