About the FCOS1600 Fire Chief Furnace - Discontinued*

*PRODUCT DISCONTINUED - This page is for informational purposes only.

The FCOS1600 Outdoor Wood Furnace keeps all of the mess outside - no ashes, wood, or dirt associated with indoor woodburning - with all of the advantages - a reliable, convenient heat source - keeping you warm, all winter long. The FCOS1600 was designed to provide efficient, economical heat to your home or business. The OS1600 is completely assembled and pre-wired when shipped. The ten inch insulated hot air flex duct is included with the furnace.

(DISCONTINUED - Oct 2014)

FCOS01600 Features:

Automatic Heat Dump - Patent Pending
Pre-Wired For Convenience
Secondary Combustion Chamber
Thermostatically Controlled Blower
Insulated Heat Duct Kit Standard - 10" x 25'
2" Fully Insulated 20 ga. Galvanized Cabinet
Manually Controlled Natural Draft System

Specifications

MODEL Specifications	FCOS1600 (DISCONTINUED - Oct 2014)
Weight	470 lb approx
Height	44.5”
Width	29.5”
Depth – includes Filter Box	57”
Maximum Heating Capacity	1800 sq ft approx
Maximum Btu Output	100,000 approx
Maximum Log Size	28”
Flue Size	6”
Fire Chamber Volume	6.00 cu ft
Plenum Size	10” Round
Cold Air Return	12” Round
Door Size	13” X 14”
Blower Capacity	1800 cfm
Warranty - Firebox	5 Years Limited
Warranty – Grates, Castings	5 Years Limited
Warranty – Electrical Components	1 Year

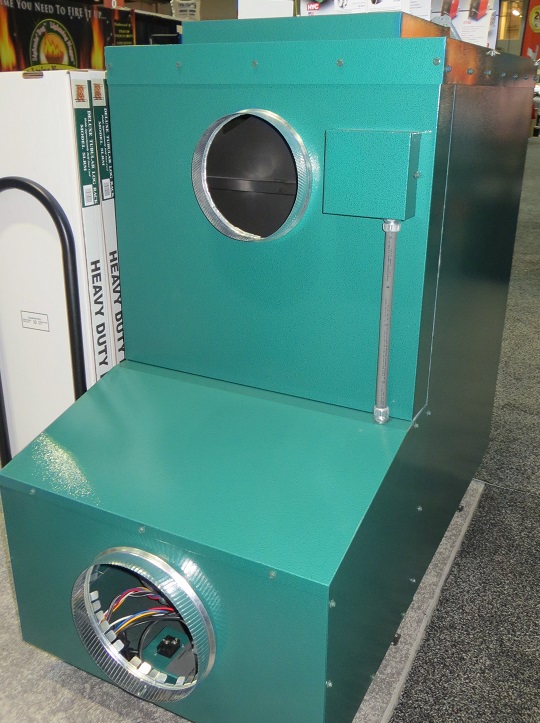

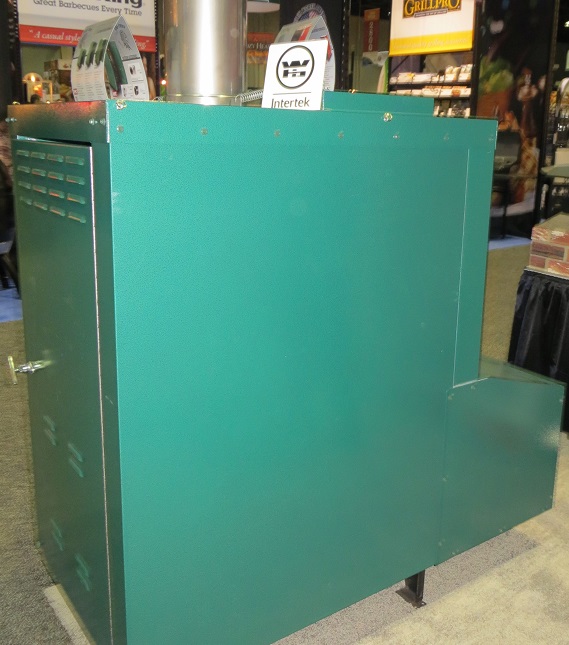

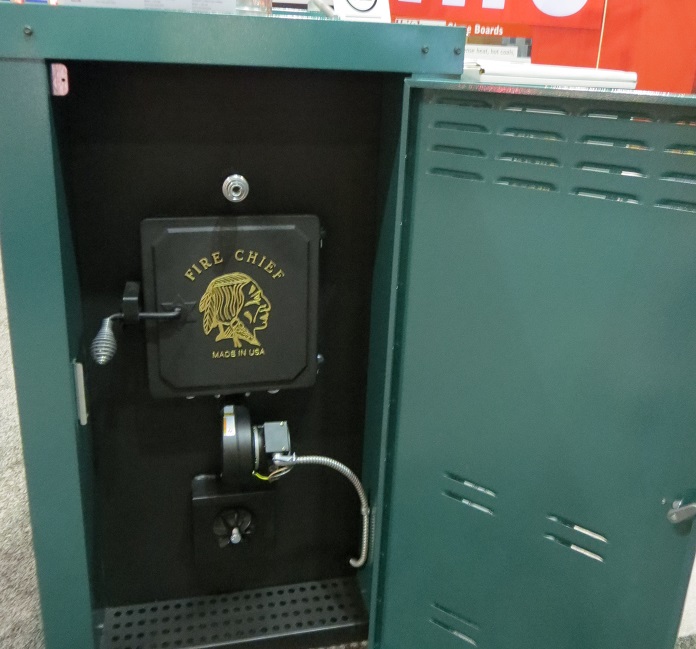

Photos
