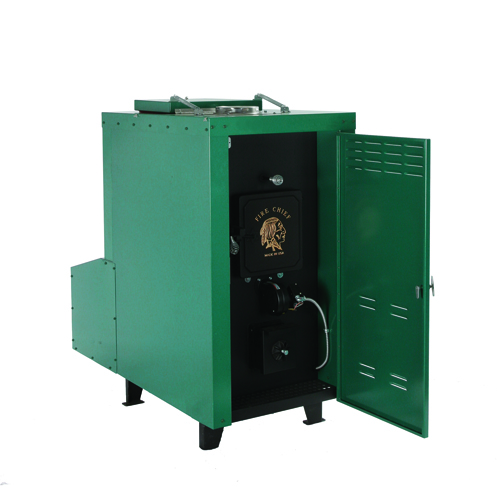

About the FCOS1800D Fire Chief Outdoor Wood Furnace - Discontinued

The FCOS1800D Outdoor Wood Furnace keeps all of the mess outside - no ashes, wood, or dirt associated with indoor woodburning - with the all of the advantages: a reliable, convenient heat source keeping you warm, all winter long.

This product is discontinued and is no longer available as it does not meet current EPA NSPS. This product is no longer available, and is no longer being shipped.

The FCOS1800D is completely assembled and pre-wired when shipped, everything needed to install is included: the ten inch insulated hot air flex duct; twelve inch flex cold air return; hi-temp silicone-everything, except the chimney pipe!

Specifications

Model Specification	Model FCOS1800D
Weight	780 lb. approx.
Dimensions	59"H x 30"W x 59"D (w/blower housing)
Maximum Heating Area	1,500 - 2,500 sq. ft.
Maximum BTU output	140,000 approx
Fire Chamber Volume	8.9 cu. ft.
Flue Diameter	6"
Plenum Size	10" Round
Cold Air Return	12" Round
Door Size	13" x 14"
Blower Capacity	1800 CFM
Induction Draft Blower	50 CFM
Maximum Log Length	28"
Warranty-Firebox	5 years Limited
Warranty-Grates/Castings	5 years Limited
Safety Tested	UL391
