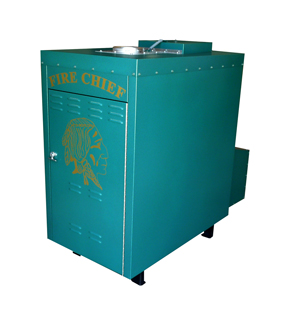

Fire Chief FCOS2200D Fire Chief Outdoor Wood Furnace - Discontinued — Manual

The FCOS2200 Outdoor Wood Furnace keeps all of the mess outside - no ashes, wood, or dirt associated with indoor woodburning - with the all of the advantages - a reliable, convenient heat source - keeping you warm, all winter long. The OS2200 was designed to provide efficient, economical heat to your home or business. The OS2200 is completely assembled and pre-wired when shipped, everything needed to install is included: the ten inch insulated hot air flex duct; hi-temp silicone.

Fire Chief Model FCOS2200D Features: Features:

Cast Iron Fuel Door
Pre-Wired For Convenience
Furnace Ships Fully Assembled
Secondary Combustion Chamber
Thermostatically Controlled Blower
Insulated Heat Duct Kit Standard - 10" x 25'
2" Fully Insulated 20 ga. Galvanized Cabinet

*The BTU ranges and heating capacity specifications are provided as guidelines only and in no way guarantee the output or capacity of the unit. The actual BTU output depends on the type of fuel being burned and its condition, the draft adjustment and the chimney that the unit is hooked up to. The actual area that the unit will heat depends on factors such as the condition of the building, heat loss, type of construction, amount of insulation, type of air movement and location of the unit.

Specifications	FCOS2200D Wood Furnace
Weight	775 lbs
Height	59"
Width	30"
Depth –with blower housing	65"
Maximum Heating Capacity	3500 sq ft
Maximum BTU Output	160,000 approx*
Fire Chamber Volume	11.00 cu ft
Flue Diameter	6"
Plenum Size	10" Round
Cold Air Return	12" Round
Door Size	13” X 14”
Blower Capacity	1800 cfm
Maximum Log Length	32"
Warranty - Firebox	5 years limited
Warranty – Grates, Castings	5 years
Warranty – Electrical Components	1 year
