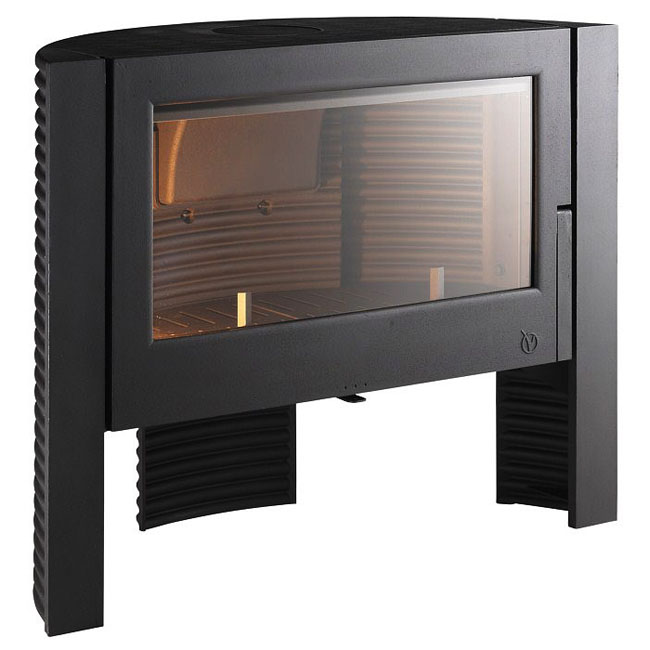

About the Invicta Itaya Woodstove
The Itaya Wood Burning EPA Stove features a firebox and baffle system designed to swirl the flames and give a captivating display. Made by stove manufacturer Invicta in France, the Itaya delivers 90,000 BTUs of heat and comes with an advanced secondary-combustion system that increases efficiency, resulting in longer burn times. It's clear pane airwash system keeps the wide viewing window clean with minimal maintenance.
Features
The Invicta Itaya Wood Stove heats up to 2500 sq ft.
- EPA Certified
- 2.32 cu. ft. Firebox
- Modern Design
- Maximum 90,000 BTUs/hr Output
- 76% Efficiency
- Weight: 485 lbs.
- 7” Top Flue
- 1.9 g/hr Emissions
- Fits 24" Logs
Specifications
| Wood Stove Specifications | Invicta Itaya |
| Dimensions | 33.25"H x 41.25"W x 17"D |
| Heat Area | 2500 sq. ft. |
| Firebox Volume | 2.32 cu. ft. |
| Log Size | 24" |
| Heat Output | 90,000 BTU |
| Emissions | 1.9 g/hr |
| Efficiency | 76% |
| Weight | 485 lbs. |
| Flue Pipe Diameter | 7" |
| Flue Exit | Top |
| Clearance to Combustibles | Invicta Itaya |
| Single Wall Pipe (Rear / Sides / Corner) | 19" / 18" / 21" |
| Double Wall Pipe (Rear / Sides / Corner) | 12" / 18" / 21" |
