Invicta Kazan Woodstove — Owner's Manual
Invicta · Owner's Manual · PDF, 19.4 MB
About the Invicta Kazan Woodstove
The Kazan cast iron woodstove will infuse harmony and zen into your living space. Manufactured in France by Invicta, the Kazan will deliver up to 42,000 BTUs of heat. Feel all the energy and warmth that emerges from this beautiful, woodburning stove. Invicta is a prime example of what happens when history, fine craftsmanship, and European design come together. The clean lines and artistry of the Kazan will not only serve as an efficient heat source but as a beautiful addition to the decor and ambiance of your home.
The Kazan cast iron woodstove will infuse harmony and zen into your living space. Manufactured in France by Invicta, the Kazan will deliver up to 42,000 BTUs of heat. Feel all the energy and warmth that emerges from this beautiful, woodburning stove. Invicta is a prime example of what happens when history, fine craftsmanship, and European design come together. The clean lines and artistry of the Kazan will not only serve as an efficient heat source but as a beautiful addition to the decor and ambiance of your home.
The Kazan Woodstove heats up to 1500 sq ft
EPA Certified
1.53 cu. ft. Firebox
Modern Sleek Design
Maximum 42,000 BTUs/hr Output
63.4% Efficiency
Weight: 350 lbs.
6” Top Flue
1.76 g/hr Emissions
Fits up to 22" Logs
Specifications
| Invicta Kazan | |
| Emissions | 1.76gr/hr EPA 2020 |
| Max Output | 42,000 BTU |
| Heating Area | 1,500 Sq Ft |
| Efficiency | 63% |
| Firebox Volume | 1.53 Cu Ft |
| Weight | 346 lbs |
| Log Size | Up to 22" |
| Flue Dimension | 6" |
| Flue Exit | Top and Rear |
| Color | Anthracite |

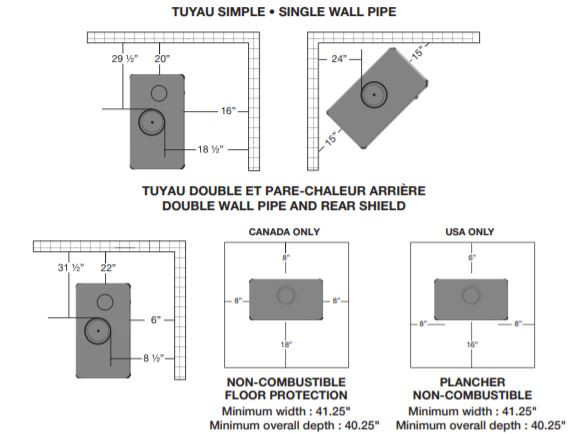

| Clearance Single Wall Pipe | Back 16” / Side 20” / Corner 15” |
| Clearance Double Wall Pipe | Back 6” / Side 22” / Corner 15” |
