About the 1100 Osburn Wood Insert - Discontinued
This product has been discontinued as it does not meet 2020 EPA Emission Standards. This page exists for informational purposes only.
This beautifully crafted insert is perfect for small stone fireplaces. It offers the choice of either black or brushed nickel cast iron overlay to provide you with the style you desire. This insert is capable of heating up to 1400 sq. ft. with a firebox volume of 1.5 cubic ft. and a burn time of up to 6 hrs producing a maximum heat output of 50,000 BTU/hr. With a blower included and an air wash system, this stove is provided with extra efficiency and ensures the glass remains clear and elegant.
This beautifully crafted insert is perfect for small stone fireplaces. It offers the choice of either black or brushed nickel cast iron overlay to provide you with the style you desire. This insert is capable of heating up to 1400 sq. ft. with a firebox volume of 1.5 cubic ft. and a burn time of up to 6 hrs producing a maximum heat output of 50,000 BTU/hr. With a blower included and an air wash system, this stove is provided with extra efficiency and ensures the glass remains clear and elegant.
Osburn 1100 Wood Insert Features:
- 45,000 BTU/hr.
- Heating capacity: 250 to 1,400 sq.ft.
- 1.5 cubic foot firebox
- Log length up to 16"
- Adjustable handle
- Self-cleaning glass system
- 130 CFM blower included
- Rear exhaust with 45° angle
- Can be installed in approved UL Listed Zero Clearance Fireplaces (see owner's manual for details)
- Tested by OMNI as per applicable standards (CSA/UL/ULC and/or others)
Options:
- Regular faceplate - 29" x 44"
- Black or nickel faceplate trims
Specifications
| Specifications | Osburn Model 1100 Insert |
| Type of fuel | Wood |
| Recommended surface | 250 to 1,400 sq.ft. |
| Blower | 130 CFM |
| Maximum output - EPA test wood | 35,000 BTU/h. |
| Maximum output - seasoned cord wood | 45,000 BTU/h. |
| Color | Metallic black |
| Minimum fireplace opening | |
| Width | 25" |
| Depth | 14" |
| Height | 22" |
| Exterior dimensions | |
| Width | 25 1/2" |
| Depth | 22 1/4" |
| Height | 21 1/8" |
| Exhaust pipe diameter | 6" |
| Type of chimney | 2,100 deg. F (650 deg. C) |
| Minimum chimney height | 12' |
| Firebox dimensions | |
| Width | 18" |
| Depth | 12.5" |
| Height | 11.25" |
| Log positioning | Over width |
| Maximum log length | 16" |
| Door opening dimensions | |
| Width | 15.5" |
| Height | 8.5" |
| Type of door | Glass with cast iron frame |
| Glass surface | 125 sq.in. |
| Weight | 297 lbs (135 kg) |
| Warranty | Limited lifetime |
| Test standard - safety | ULC S-627 / UL 1482 |
| Test standard - emissions | EPA Method 28 |
| Minimum clearances to combustibles | |
| Combustible side wall to unit | 13" |
| Combustible side mantle to unit | 9" |
| Combustible shelf to unit | 27" |
| Mimimum floor protection in front of unit | 18" |
| Projection in the room mimimum / maximum | 7" / 7" |

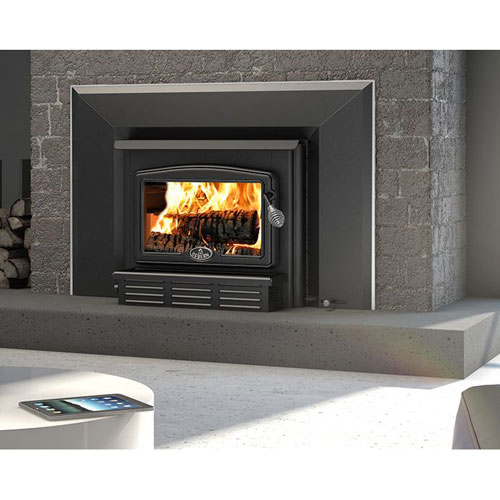

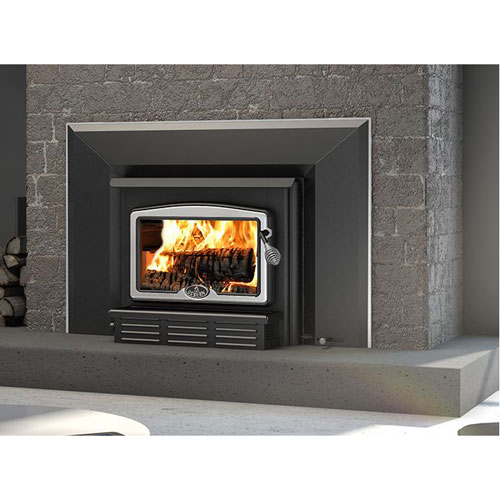

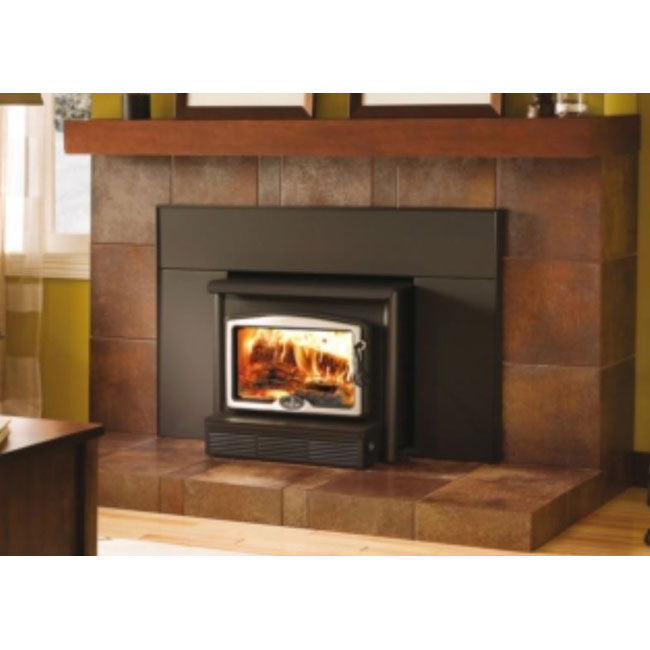

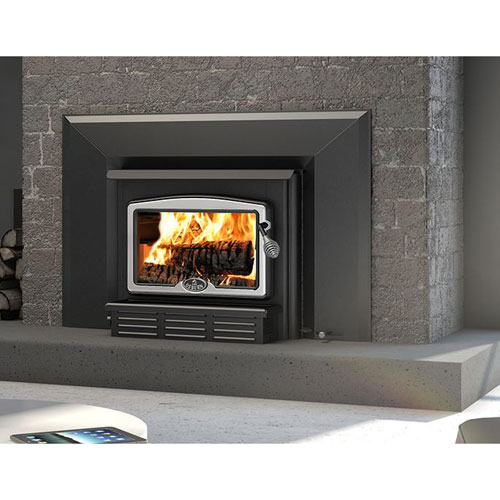

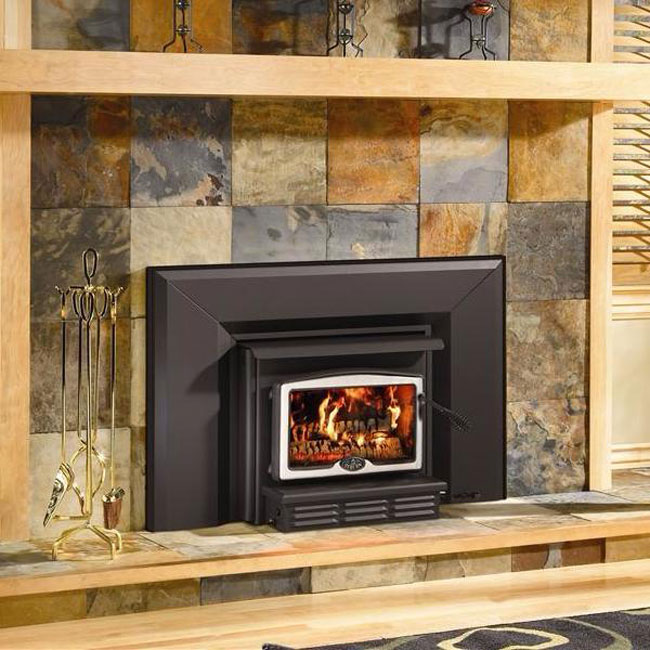

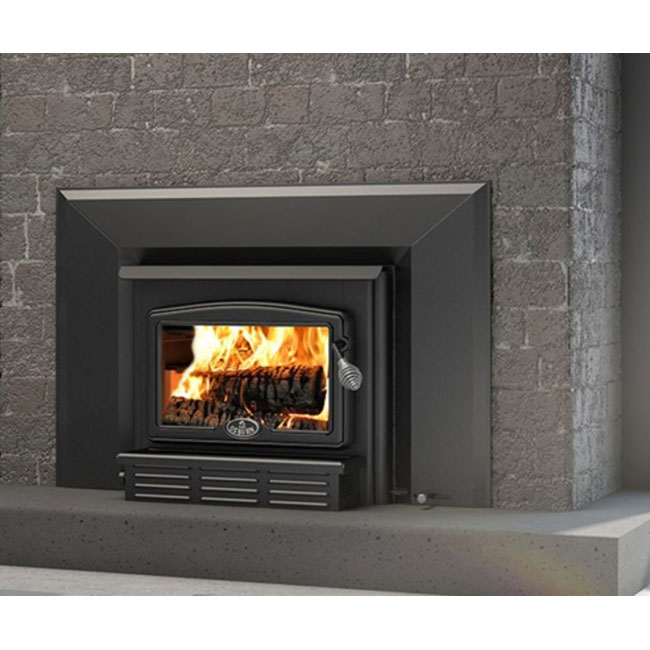

Photos
