About the Osburn 3300 Wood Stove - Not Available
The Osburn 3300 Wood Burning Stove represents the essence of eco-friendly and high-efficiency heating. With an emission rate of only 0.95 g/h, this non-catalytic wood stove is among the cleanest and most environmentally friendly source of energy on the market. This north-south loading model will keep your family warm all night long, even in very cold weather, thanks to its heat output of 90,000 BTU/h.
The design of the heater is enhanced by a set of high density bricks, a C-Cast baffle, a new cast iron door mold, an integrated ash drawer, a top heat deflector as well as decorative side panels.

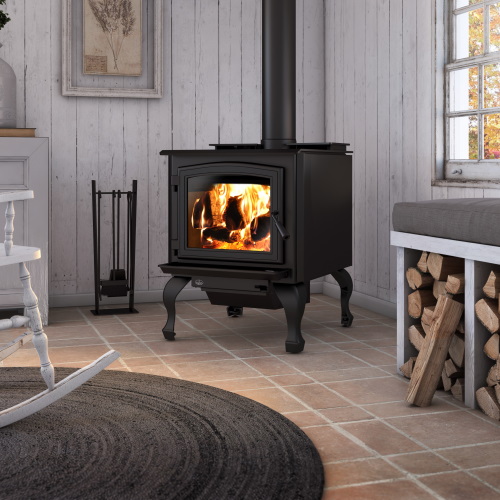

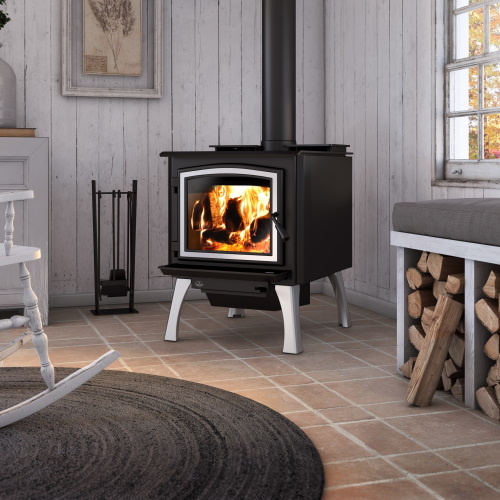

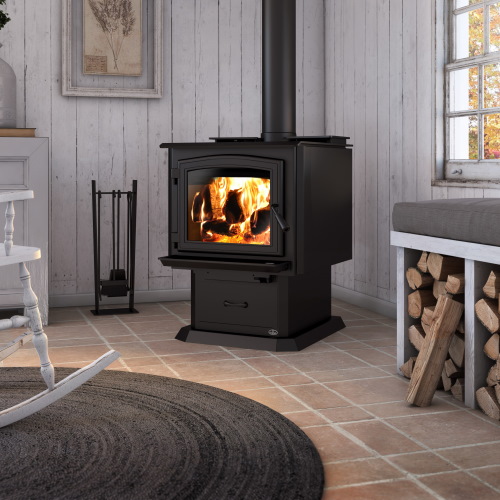

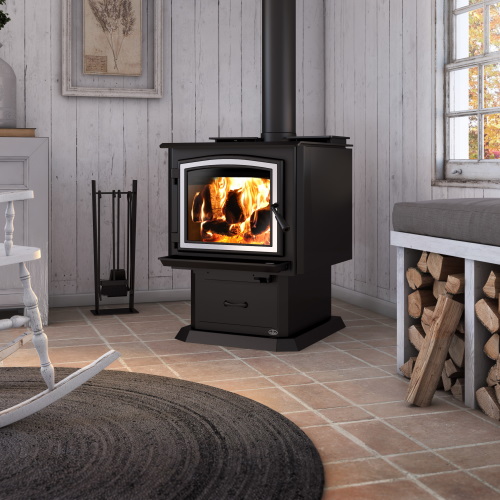

This new generation wood stove offers numerous configuration options, ranging from traditional or straight legs to a door overlay available in black or brushed silver. Additionally, you can choose a pedestal, a rigid spark arrester, a blower with thermodisc and a glass ash lip according to your needs. Let yourself be inspired and reinvent your interior comfort!
Specifications
| Specifications | Osburn Model 3300 Wood Stove |
| Heating Area | 900 - 2,300 sq. ft. |
| Firebox Volume | 3.3 cu. ft. |
| Max Burn Time | 10 hrs. |
| Overall Heat Output rate (Min to Max) | 15,841 - 57041,300 BTU/hr (4.64-16.72 kW) |
| Max Heat Output | 90,000 BTU/hr (26.4 kW) |
| Average Overall Efficiency | 71.1% HHV to 76.6% LHV |
| Optimum Efficiency | 78% |
| Average Particulate Emissions Rate | 0.95 g/hr. |
| Average CO | 61.3 g/hr. |
| Max Log Length | 20" |
| Chimney Diameter | 6" |
| Flue Outlet Diameter | 6" |
| Shipping Weight | 465 lb |
| Type of Chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum Chimney Height | 15 ft. |
| Baffle Type | C-Cast |
| Door Type | Single, glass with cast iron frame |
| Glass Type | Ceramic glass |
| Glass Surface ( W x H) | 14-1/2"W x 11-5/8H" |
| Overall Dimensions ( H x W x D) | 34"H x 24-1/4"W x 30-1/2"D |
| Door Opening Dimensions ( H x W) | 12"H x 16"W |
| Firebox Dimensions ( H x W x D) | 14-1/8"H x 19"W x 21"D |
| Steel Thickness (Body x Top) | 3/16" x 5/16" |
| USA Standards (Emissions) | EPA 2020 |
| Canadian Standards (Emissions) | CSA B415.1-10 |
| USA Standards ( Safety) | UL 1482, UL 737 |
| Canadian Standards ( Safety) | ULC S627 |
| Warranty | Limited Lifetime |
| Clearance to Combustibles | Osburn Model 3300 Wood Stove |
| Back Wall (Single Wall Pipe / Double Wall Pipe) | 14-1/2" / 6" |
| Corner (Single Wall Pipe / Double Wall Pipe) | 10" / 8" |
| Side Wall | 12" |
| Top - Measured from Platform the appliance is installed | 84" |
Photos
