Osburn Matrix Wood Stove — Manual

Osburn · Manual · PDF, 6.2 MB

Manual · PDF · 6.2 MB

Osburn-Matrix-Wood-Stove-Manual.pdf

About the Osburn Matrix Wood Stove

With the same sleek, modern style and vastly improved performance, the Matrix wood burning stove will certainly bring a European touch to your home. Let the Matrix wood stove provided you the warmth, safety and coziness needed during these cold winters.

*Revised 7/27/20

Logs will easily fit under the large firebox, making the Matrix a practical and stylish heater. The Matrix is equipped with a 130 CFM fan to ensure optimal heat distribution. Enjoy the comfort of winter more than ever before!

Features:

The Matrix Wood Stove heats up to 2,100 square feet!
2.4 cu. ft. firebox
75,000 BTU
1.54 g/hr emissions
8 hour burn time
Ceramic glass
C-Cast Baffle
EPA 2020
Limited Lifetime Warranty

Specifications

Technical Specifications	Osburn Matrix Wood Stove
Heat Area	500-2100 sq. ft.
Overall Dimensions	36-7/8" H x 27-1/8"W x 25"D
Firebox Volume	2.4 Cubic Feet
Max Log Length	20"
Heat Output	75,000 BTU
Emissions	1.54 g/hr
Efficiency	72%
Burn Time	8 hr
Flue Pipe Diameter	6"
Minimum Chimney Height	12'
Warranty	Limited Lifetime
Clearance to Combustibles	Osburn Matrix Wood Stove
Corner / Rear / Sides (Single Wall)	10" / 11" / 16"
Corner / Rear / Sides (Double Wall)	7" / 6" / 16"

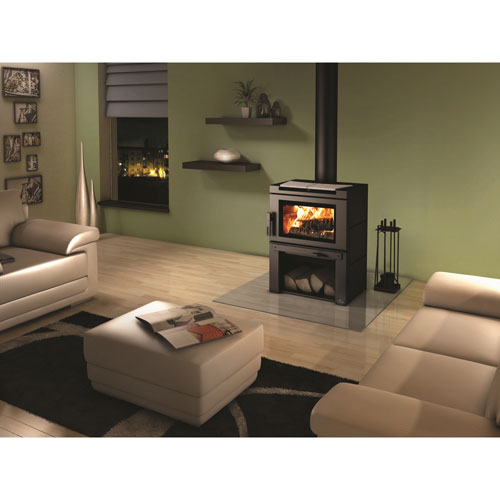

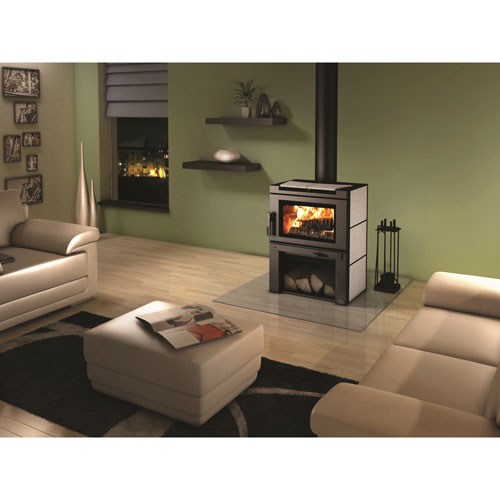

Photos

$\nOsburn-Matrix-Solid$ $\nOsburn-Matrix-Solid$
